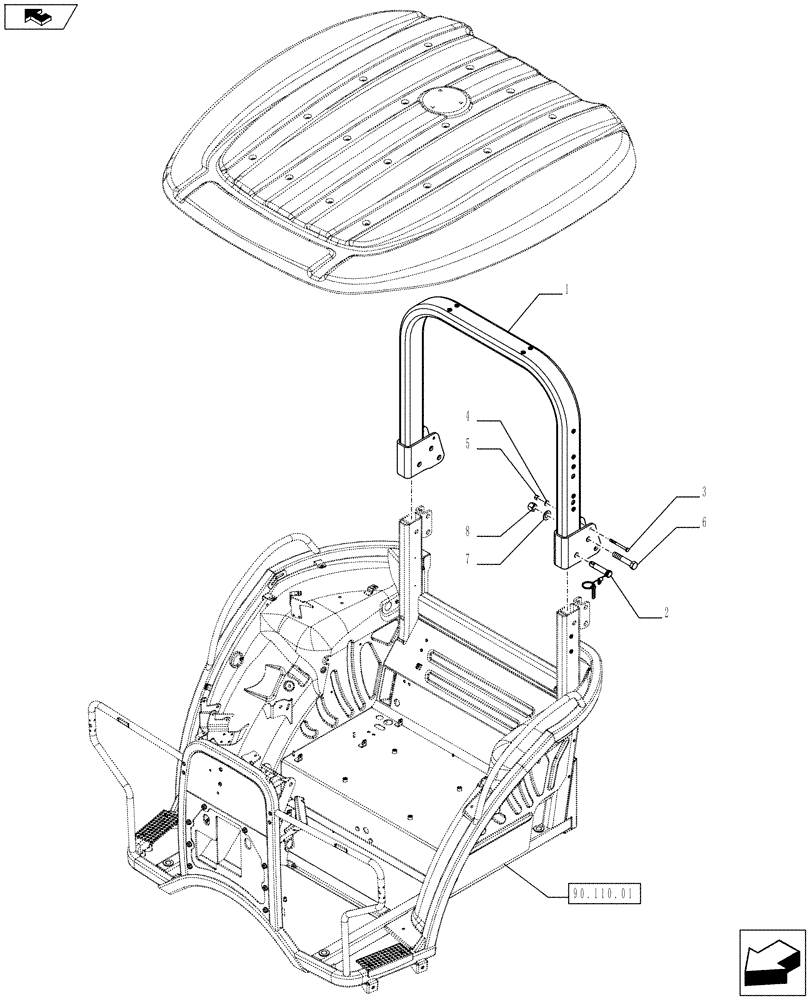

Запчасти Case IH FARMALL 75C (90.114.03) - FOLDABLE ROPS - NAR - L/CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84355392

ROPS

1шт.

2

84357062

PIN

1шт.

3

16046124

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

2шт.

4

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

5

86528579

NUT,M8 x 1.25

2шт.

6

15985621

BOLT,Hex, M18 x 1.5 x 120mm, Cl 8.8

2шт.

7

14497121

WASHER,21mm ID x 37mm OD x 3mm Thk

2шт.

8

12575021

NUT,M18 x 1.5, Cl 10

2шт.
