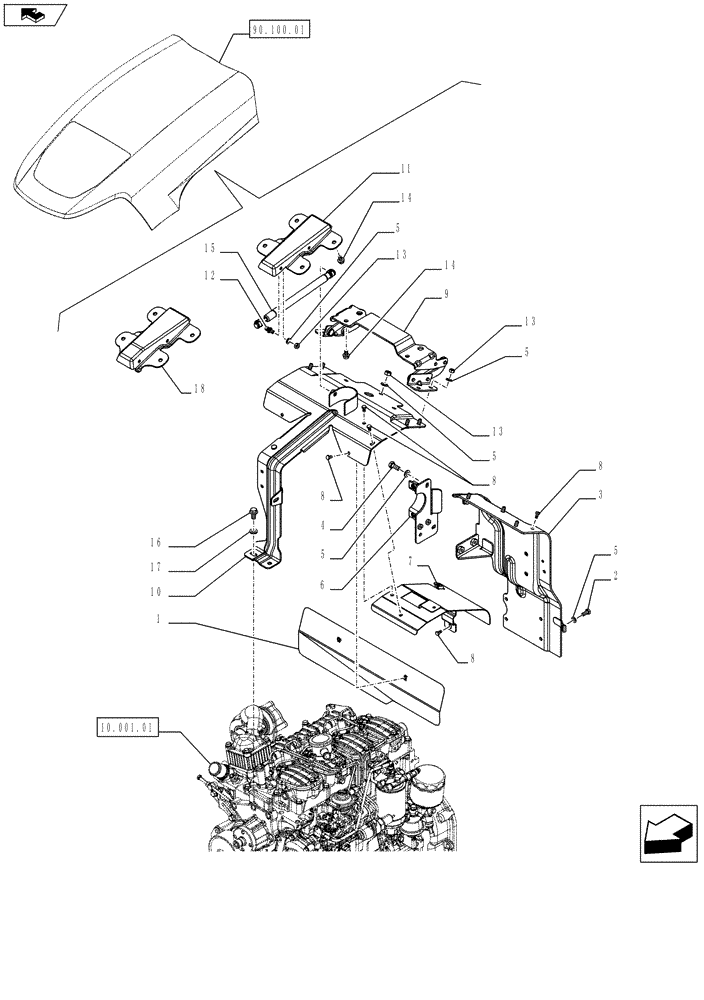

Запчасти Case IH FARMALL 75C (90.102.0202[02]) - HOOD - SUPPORTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84352194

SHROUD

1шт.

2

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

4шт.

3

84298412

SUPPORT

1шт.

4

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

16шт.

6

84340733

SUPPORT

1шт.

7

84352193

SHROUD

1шт.

8

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

6шт.

9

84468641

HINGE

1шт.

10

84287981

SUPPORT

1шт.

11

84277182

BRACKET

1шт.

12

87603835

BALL STUD,10mm D, M8 x 13mm

2шт.

13

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

8шт.

14

16281924

FLANGE BOLT,Hvy Hex, M8 x 14mm, Cl 8.8, Full Thd

6шт.

15

84422443

GAS STRUT

1шт.

16

16587024

FLANGE BOLT,Hex, M10 x 20mm, Cl 8.8, Full Thd

2шт.

17

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

2шт.

18

84417852

BRACKET

1шт.
