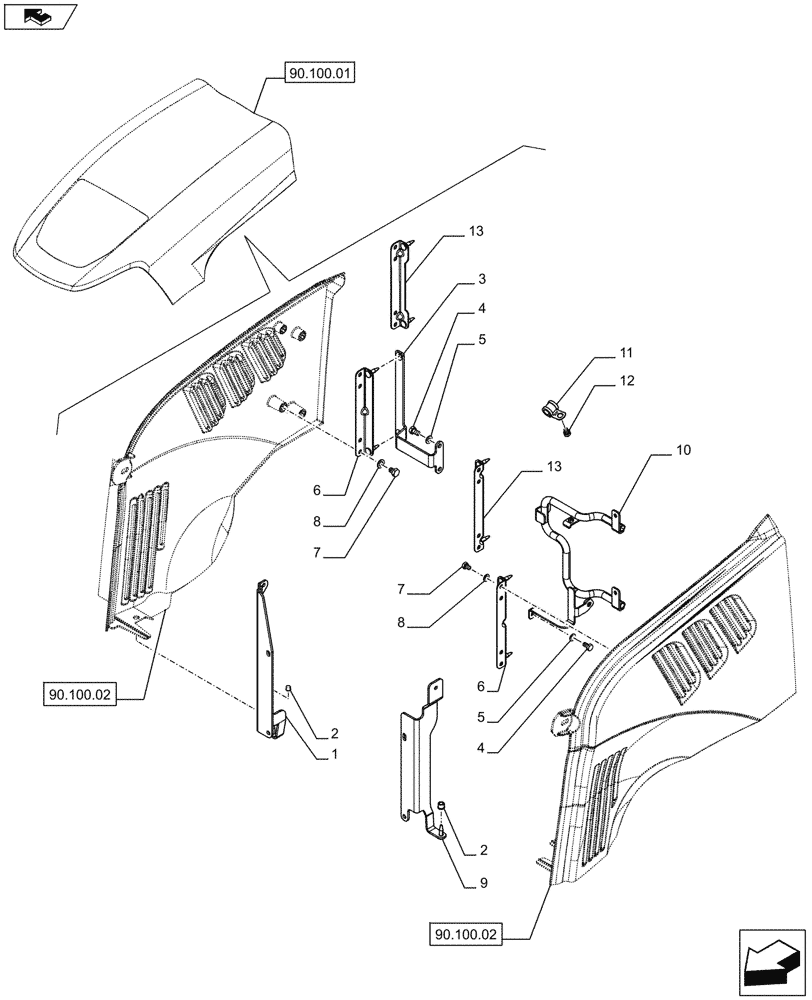

Запчасти Case IH FARMALL 75C (90.102.0202[01]) - HOOD - SUPPORTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84310044

BRACKET

1шт.

2

87632500

BUSHING

2шт.

3

84309993

BRACKET

1шт.

4

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

6

84330851

BRACKET

, Years: -21-AUG-12

2шт.

7

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

8

13507104

WASHER,9.2mm ID x 16mm OD x 1.5mm Thk

4шт.

9

84310029

BRACKET

1шт.

10

84309989

BRACKET

1шт.

11

10450290

CLAMP,12mm, Coat, 9mm Bolt Hole, P Type

1шт.

12

16042931

BOLT,Hex, M8 x 1.25 x 10mm, Cl 10.9, Full Thd

1шт.

13

84497480

BRACKET

, Start Year: 22-AUG-12

2шт.
