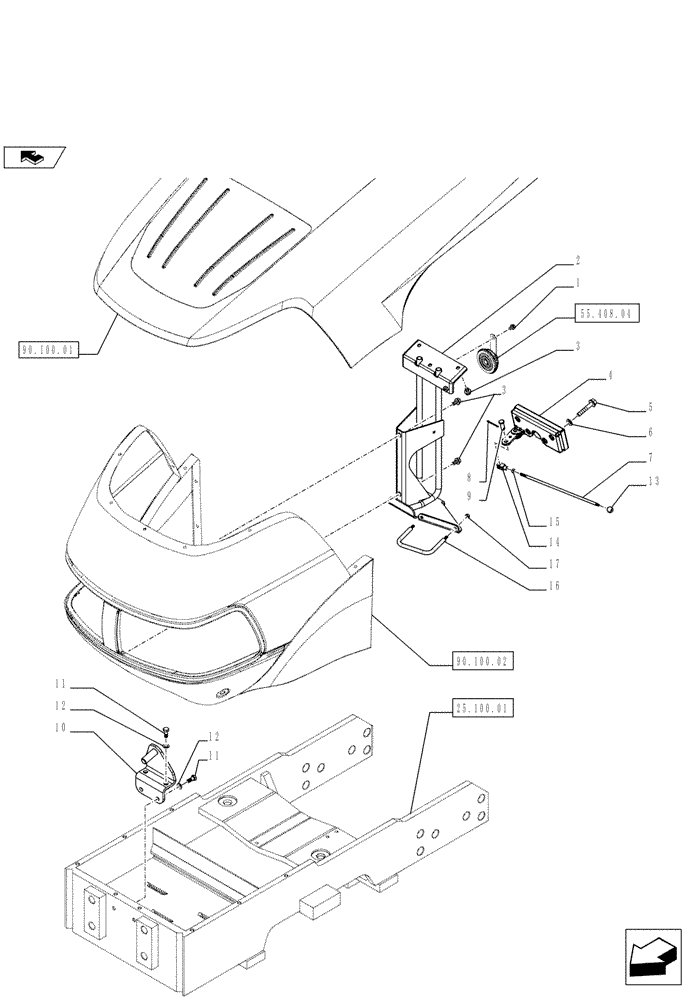

Запчасти Case IH FARMALL 75C (90.102.0201) - HOOD - LATCH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

16285924

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8, Full Thd

1шт.

2

84278506

SUPPORT

1шт.

3

16285924

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8, Full Thd

5шт.

4

84349450

LOCK

1шт.

5

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

4шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

7

84329993

THREADED TIE-ROD

1шт.

8

10734101

COTTER PIN,M1.6 x 12

1шт.

9

10004911

PIN,6mm OD x 17mm L

1шт.

10

84327743

BRACKET

1шт.

11

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

12

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

13

84287785

BALL,5mm ID x 16mm OD

1шт.

14

10007771

YOKE

1шт.

15

15896211

NUT,M6, Cl 8

1шт.

16

84384258

U-BRACKET

1шт.

17

10720114

NUT,Hex, M6 x 1

2шт.
