(90.100.01) - HOOD - HOOD

Запчасти Case IH FARMALL 75C (90.100.01) - HOOD - HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

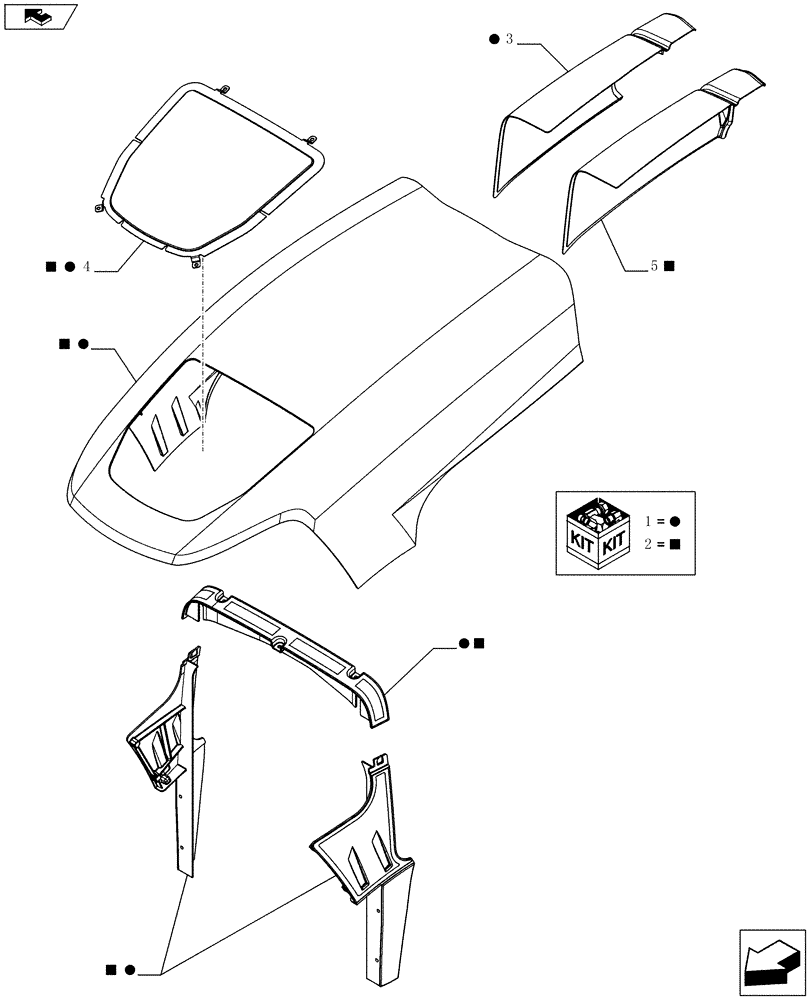

Схема запчастей Case IH FARMALL 75C - (90.100.01) - HOOD - HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
1
2
2
1
3
2
2
5
1
4
1
1
home
2
1
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84333455

ENGINE HOOD

ASSY, Contains Ref. 3, 4

1шт.

2

84340029

ENGINE HOOD

ASSY, Contains Ref. 4, 5

1шт.

Base Brand Colour for Exhaust Horizontal, VAR.332501 (Commercial Feature 743499)

1шт.

3

84336806

SHIELD

1шт.

4

84310665

RADIATOR GRILLE

1шт.

5

84350100

SHIELD

1шт.

Base Brand Colour for Exhaust Horizontal, VAR.332501 (Commercial Feature 743499)

1шт.

Выбрано товаров: 7
