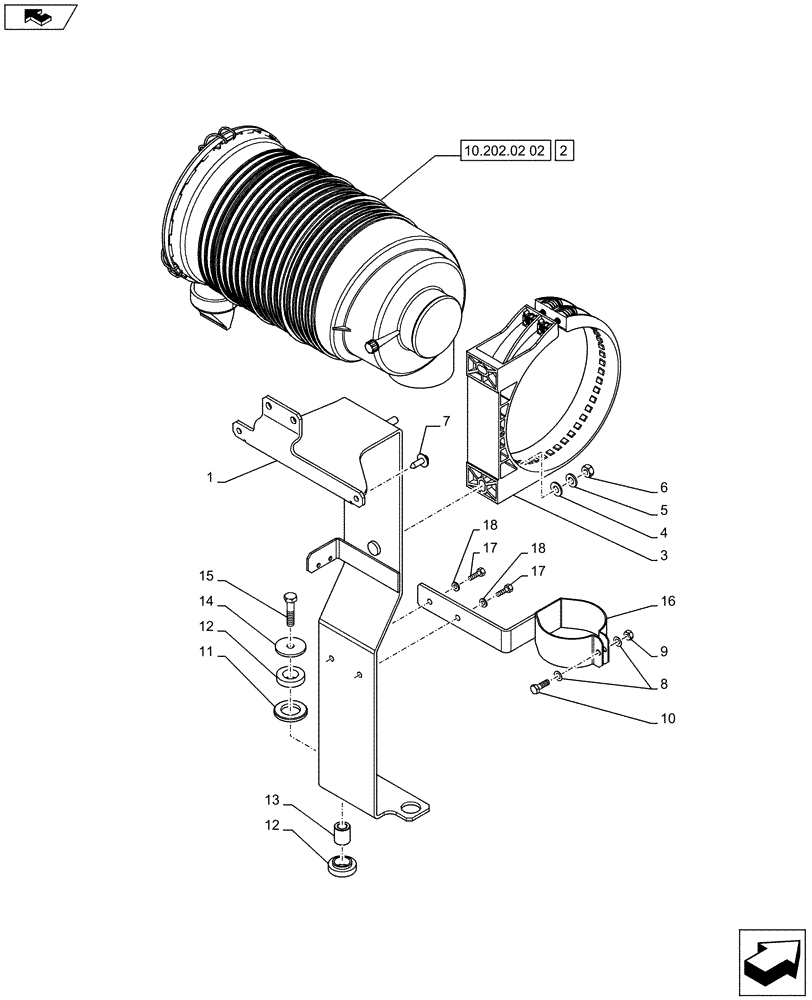

Запчасти Case IH FARMALL 75C (10.202.02[01]) - AIR CLEANER, SUPPORT (10) - ENGINE

1

84240003

BRACKET

1шт.

2

5176855

AIR FILTER

ASSY

1шт.

3

85805391

HOSE CLIP

1шт.

4

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

5

11194079

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

2шт.

6

43362

NUT,M8 x 1.25, Cl 10

2шт.

7

15697804

SELF-TAP SCREW,Hex Wshr Hd, M6 x 20mm

2шт.

8

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

2шт.

9

15896211

NUT,M6, Cl 8

1шт.

10

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

11

10731214

WASHER,22.4mm ID x 38mm OD x 4mm Thk

2шт.

12

4952241

PAD

4шт.

13

87550824

SPACER

2шт.

14

12646204

WASHER,8.15mm ID x 35mm OD x 3mm Thk

2шт.

15

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

16

84467703

BRACKET

1шт.

17

10902314

SCREW,Hex, M6 x 18mm

2шт.

18

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

2шт.
