(88.088.02) - DIA KIT - 1 EXTERNAL MIRROR L/CAB - RH DRIVE - NAR

Запчасти Case IH FARMALL 75C (88.088.02) - DIA KIT - 1 EXTERNAL MIRROR L/CAB - RH DRIVE - NAR (88) - ACCESSORIES

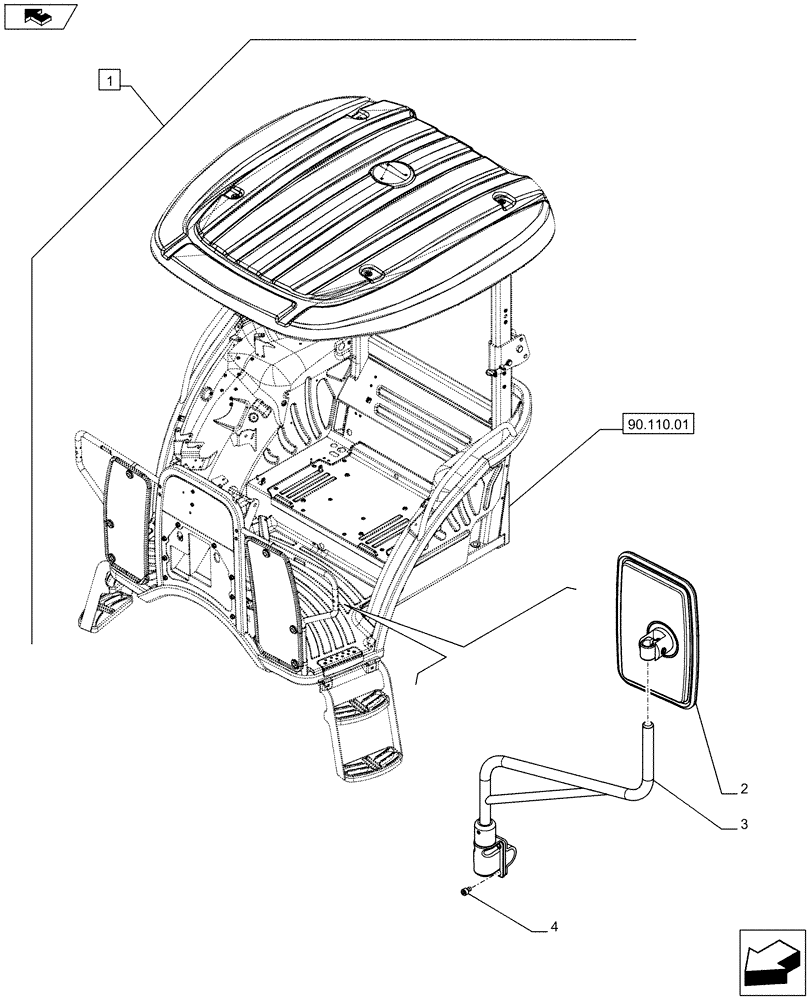

Схема запчастей Case IH FARMALL 75C - (88.088.02) - DIA KIT - 1 EXTERNAL MIRROR L/CAB - RH DRIVE - NAR (88) - ACCESSORIES
90.110.01
1
3
home
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719881250

DIA KIT, TRACTOR

External Mirror L/CAB - RH Drive, Contains Ref. 2-4

1шт.

2

5089603

MIRROR

1шт.

3

5089749

SUPPORT

1шт.

4

14305024

HEX SOC SCREW,M6 x 10mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 4
