(88.088.01) - DIA KIT - 1 EXTERNAL MIRROR W/CAB - RH DRIVE - NAR

Запчасти Case IH FARMALL 75C (88.088.01) - DIA KIT - 1 EXTERNAL MIRROR W/CAB - RH DRIVE - NAR (88) - ACCESSORIES

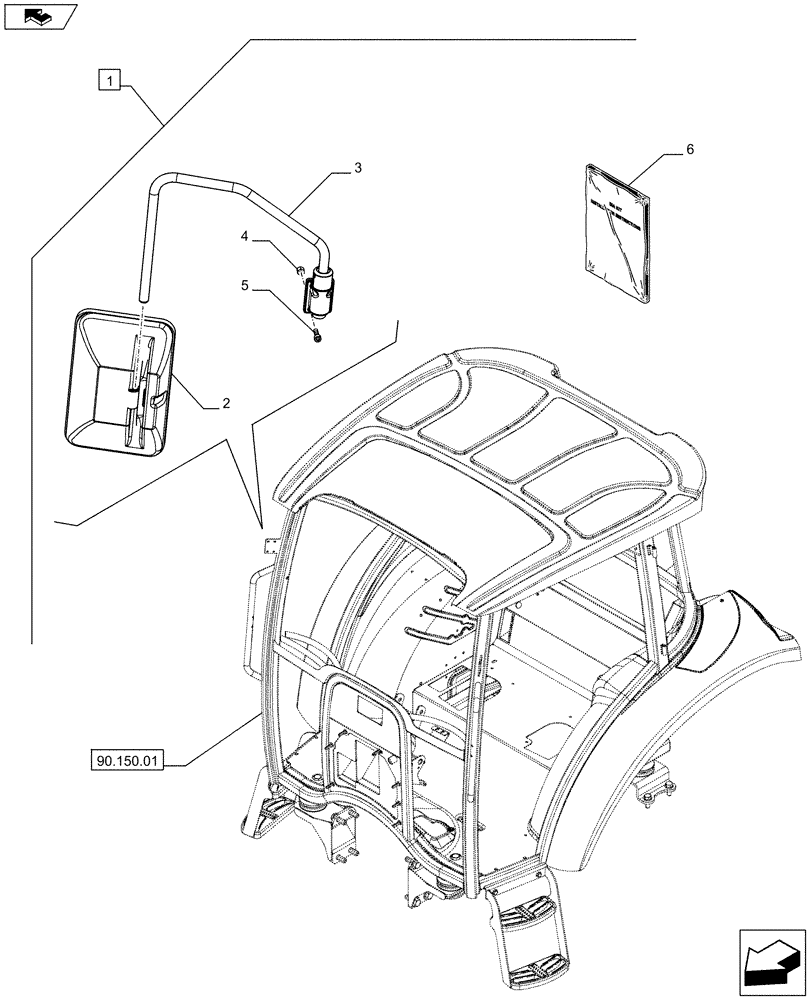

Схема запчастей Case IH FARMALL 75C - (88.088.01) - DIA KIT - 1 EXTERNAL MIRROR W/CAB - RH DRIVE - NAR (88) - ACCESSORIES
3
6
1
5
2
home
4
90.150.01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

719880250

DIA KIT, TRACTOR

1 External Mirror W/CAB - RH Drive, Contains Ref. 2-6

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

5091914

REAR VIEW MIRROR

1шт.

3

84223825

MIRROR ARM

ASSY

1шт.

4

12574211

NUT,M6 x 1, Cl 8

4шт.

5

14305331

HEX SOC SCREW,M6 x 20mm, Cl 10.9, Full Thd

4шт.

6

84476316

INSTRUCTION

1шт.
