(88.082.01) - DIA KIT - 4 MULTIFASTER COUPLERS - NAR

Запчасти Case IH FARMALL 75C (88.082.01) - DIA KIT - 4 MULTIFASTER COUPLERS - NAR (88) - ACCESSORIES

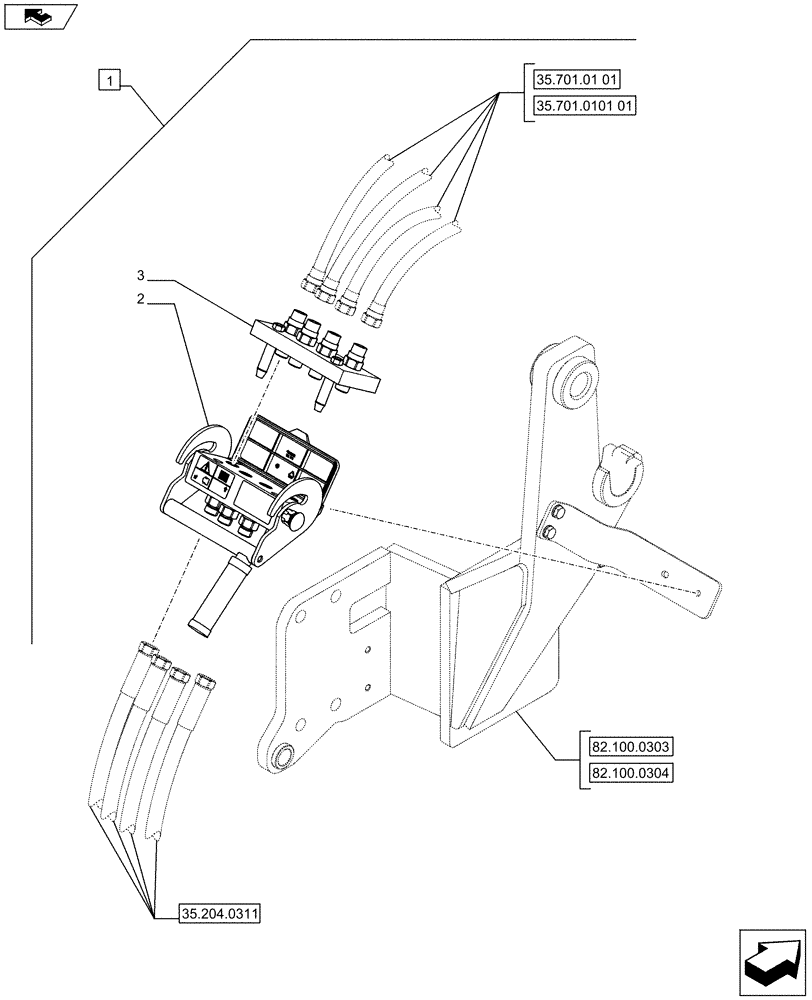

Схема запчастей Case IH FARMALL 75C - (88.082.01) - DIA KIT - 4 MULTIFASTER COUPLERS - NAR (88) - ACCESSORIES
3
1
82.100.0304
35.204.0311
82.100.0303
home
35.701.01 01
35.701.0101 01
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710732250

DIA KIT, TRACTOR

4 Multifaster Couplers, Contains Ref. 2, 3

1шт.

2

87733579

COUPLING

1шт.

3

47341196

HYDRAULIC VALVE

1шт.
