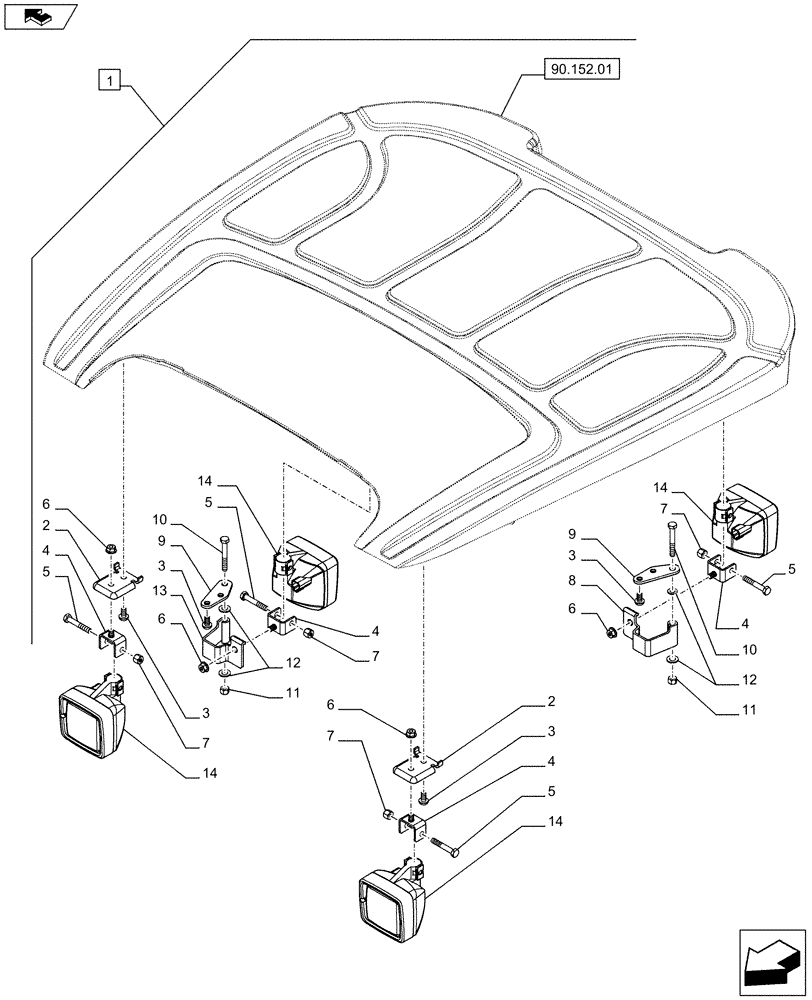

Запчасти Case IH FARMALL 75C (88.055.04) - DIA KIT - 4 WORK LIGHTS - NAR - W/CAB (88) - ACCESSORIES

1

719755260

DIA KIT, TRACTOR

4 Work Lights, Contains Ref. 2-14

1шт.

2

84317202

BRACKET

2шт.

3

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

6шт.

4

84317204

BRACKET

4шт.

5

16044221

SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

6

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

4шт.

7

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

4шт.

8

84317199

BRACKET

1шт.

9

84317198

COVER PLATE

2шт.

10

16044534

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

2шт.

11

16102314

THIN NUT,M8 x 1.25, Cl 04

2шт.

12

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

13

84317200

BRACKET

1шт.

14

84299527

LAMP,Halogen, 12V, 55W, Clear Lens

4шт.
