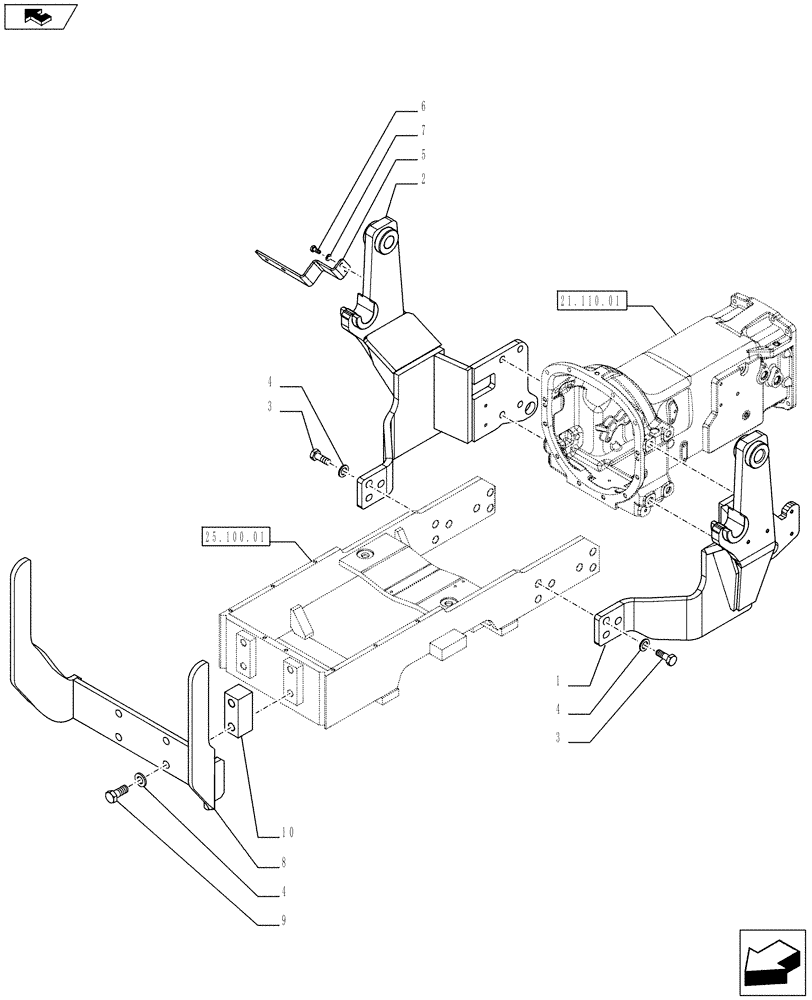

Запчасти Case IH FARMALL 75C (82.100.0303) - FRONT LOADER WITH 4 COUPLERS - REAR BRACKETS - NAR - W/CAB (VAR.330489-333489-334489-335489-339489) (82) - FRONT LOADER & BUCKET

1

84415578

BRACKET

LH

1шт.

2

84415574

BRACKET

RH

1шт.

3

15988631

BOLT,Hex, M20 x 1.5 x 75mm, Cl 10.9

6шт.

4

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

6шт.

5

84318326

BRACKET

1шт.

6

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

8

84319164

BRACKET

1шт.

9

11126134

BOLT,Hex, M20 x 120mm, Cl 10.9

4шт.

10

84384968

PLATE

2шт.
