(55.518.02[02]) - FRONT WINDSHIELD WIPER - TANK - W/CAB

Запчасти Case IH FARMALL 75C (55.518.02[02]) - FRONT WINDSHIELD WIPER - TANK - W/CAB (55) - ELECTRICAL SYSTEMS

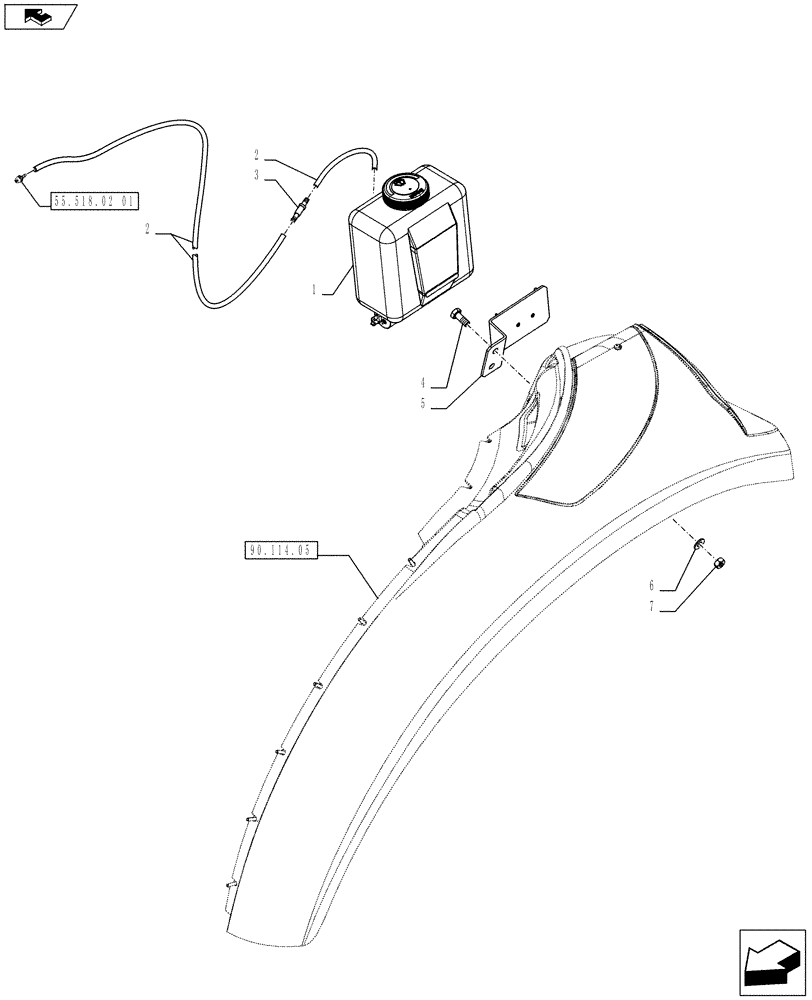

Схема запчастей Case IH FARMALL 75C - (55.518.02[02]) - FRONT WINDSHIELD WIPER - TANK - W/CAB (55) - ELECTRICAL SYSTEMS
3
4
2
1
5
7
6
90.114.05
55.518.02 01
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87490092

RESERVOIR, WINDSHIEL

1шт.

2

82849313

TUBE

HOSE,LARGE 5000MM

1шт.

3

5136113

VALVE

1шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

5

84378245

BRACKET

1шт.

6

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

7

16100814

NUT,M8, Cl 8, DAC

2шт.
