(55.512.01[01]) - CENTRAL RIGHT PILLAR - SWITCH AND RELATED PARTS - W/CAB

Запчасти Case IH FARMALL 75C (55.512.01[01]) - CENTRAL RIGHT PILLAR - SWITCH AND RELATED PARTS - W/CAB (55) - ELECTRICAL SYSTEMS

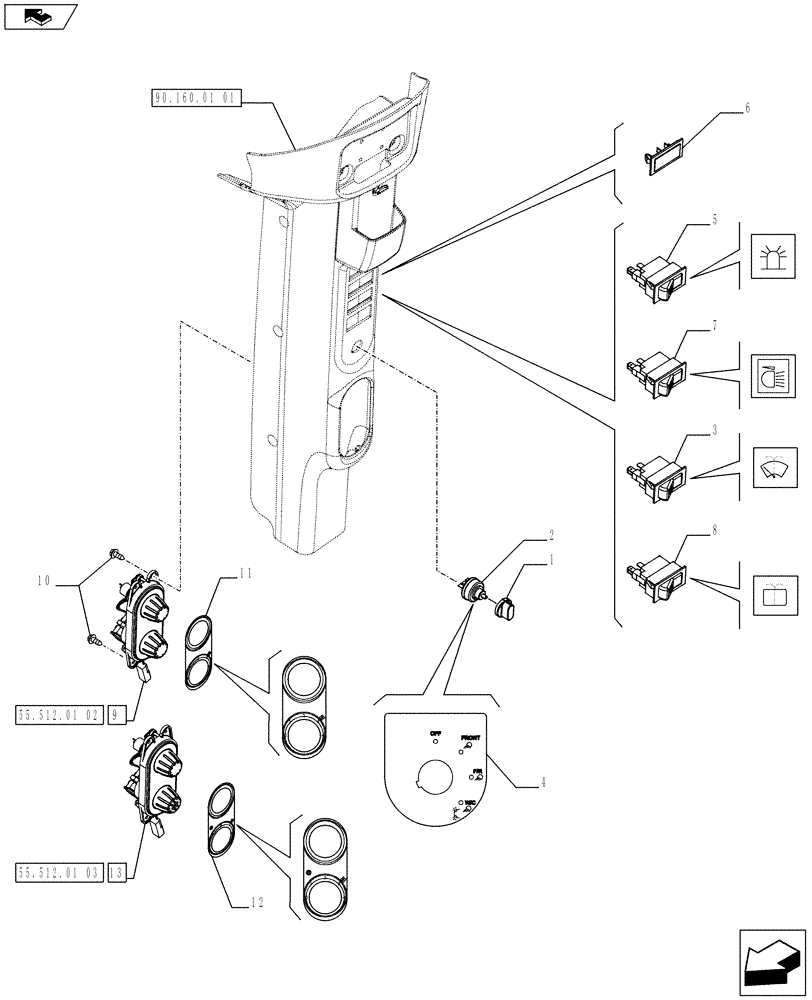

Схема запчастей Case IH FARMALL 75C - (55.512.01[01]) - CENTRAL RIGHT PILLAR - SWITCH AND RELATED PARTS - W/CAB (55) - ELECTRICAL SYSTEMS
3
6
55.512.01 02
4
13
2
11
55.512.01 03
5
90.160.01 01
9
7
1
10
12
8
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86729670

KNOB

1шт.

2

177250A1

LIGHT SWITCH

Lighting 4 Position Rotory

1шт.

3

84293177

WINDSHIELD WASHER SW

Front Wiper

1шт.

4

84345941

LABEL

Work/Corner Lights

1шт.

5

84275431

BEACON SWITCH

Beacon

1шт.

ISO Market Models Only

1шт.

6

5166218

PLUG,Switch

1шт.

7

84206941

SWITCH

Headlight; Green

1шт.

2 Road Lights in the Cab Roof; VAR. 335717-336717 (Commercial Feature 743583)

1шт.

ISO Market Models Only

1шт.

8

84293175

WINDSHIELD WASHER SW

Rear Washer

1шт.

Rear Wiper and Washer; VAR.330642

1шт.

9

84297125

CONTROL

1шт.

For Heating System

1шт.

10

15516201

SCREW,Hex, M4 x 2.5 x 12mm

4шт.

11

84349893

BEZEL

1шт.

For Heating System

1шт.

12

84349885

DECAL

1шт.

Air Conditioning; VAR.330641

1шт.

13

84296746

CONTROL

1шт.

Air Conditioning; VAR.330641

1шт.
