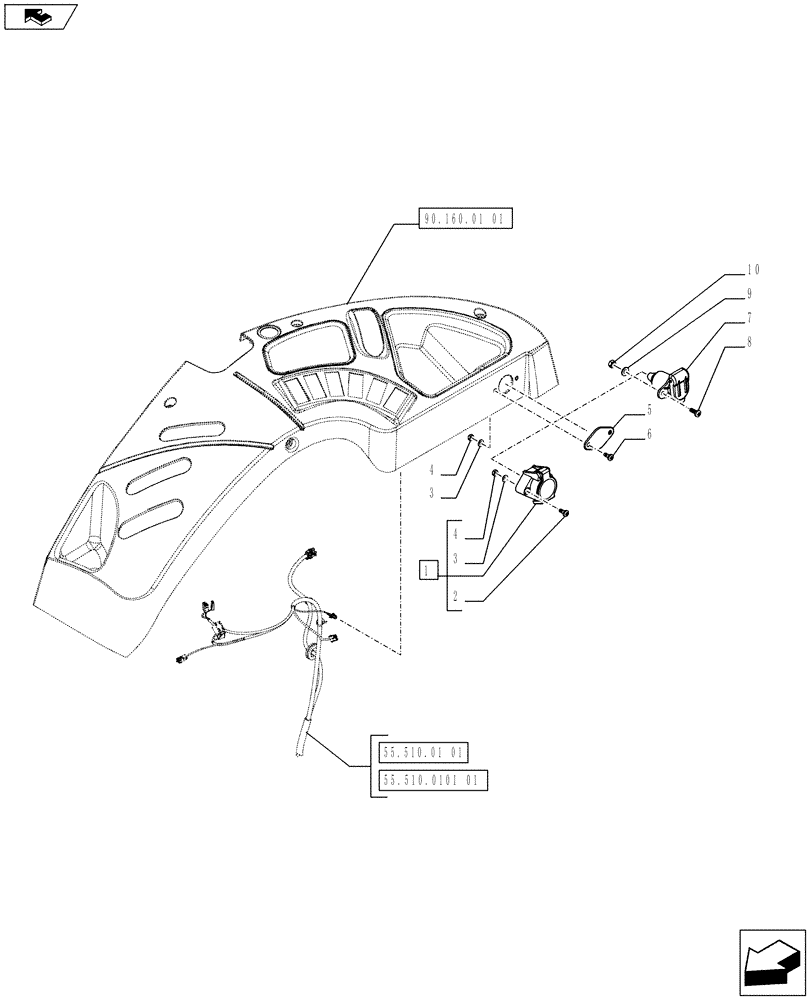

Запчасти Case IH FARMALL 75C (55.510.11[02]) - INSIDE CAB POWER SOCKET (55) - ELECTRICAL SYSTEMS

1

83982634

POWER SOCKET

ASSY, Contains Ref. 2-4

1шт.

NAR Market Models Only

1шт.

2

13272624

SCREW,Pozidriv Pan Hd, M4 x 25mm, Cl 8.8

2шт.

3

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

2шт.

4

10794014

NUT,M4, Cl 8

2шт.

5

47135744

COVER

1шт.

ISO Market Models Only

1шт.

6

13271914

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

2шт.

7

5170243

POWER SOCKET,25A

1шт.

With 25Ah Power Socket, VAR.333755 (Commercial Feature 743584)

1шт.

ISO Market Models Only

1шт.

8

13274124

SCREW,Pozidriv Pan Hd, M5 x 14mm, Cl 8.8, Full Thd

2шт.

9

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

2шт.

10

15896414

NUT,M5, Cl 8

2шт.
