Запчасти Case IH FARMALL 75C (55.510.01[01]) - CAB CABLE AND RELATIVE PARTS - NAR (55) - ELECTRICAL SYSTEMS

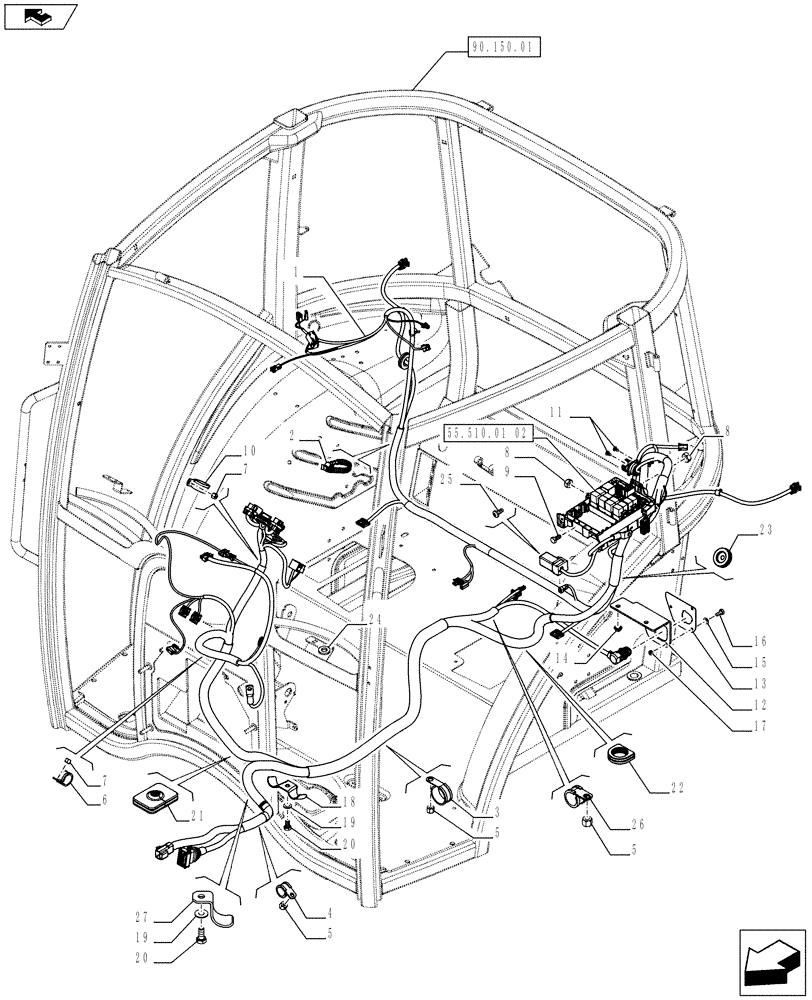

Схема запчастей Case IH FARMALL 75C - (55.510.01[01]) - CAB CABLE AND RELATIVE PARTS - NAR (55) - ELECTRICAL SYSTEMS
8
27
19
25
24
7
11
3
5
18
15
2
9
5
17
4
16
13
home
55.510.01 02
90.150.01
14
23
19
22
7
10
26
20
20
6
8
1
5
21
12

Артикул

Название

Примечание

Количество

1

84466348

WIRE HARNESS

Main Harness

1шт.

1

84466355

WIRE HARNESS

Main Harness

1шт.

Main Harness Full, VAR.335754 (Commercial Feature 743587)

1шт.

2

85805383

CABLE TIE

CABLE STRAP

3шт.

3

10448790

CLAMP,30mm, Coat, 9mm Bolt Hole, P Type

3шт.

4

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

1шт.

5

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

5шт.

6

10441890

CLAMP,22mm, Coat, 7mm Bolt Hole, P Type

1шт.

7

12574211

NUT,M6 x 1, Cl 8

4шт.

8

15896211

NUT,M6, Cl 8

2шт.

9

10977624

BOLT,Hex, M5 x 12mm, Cl 8.8, Full Thd

1шт.

10

10417901

RETAINER,26mm, Coat, 7mm Bolt Hole, P Type

3шт.

11

82007240

SCREW,Round Washer, 3mm OD x 1.34mm Thd

4шт.

12

84230592

BRACKET

1шт.

13

84230590

RETAINING PLATE

1шт.

14

13046111

LOCK NUT,Flg Lock, M6

2шт.

15

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

3шт.

16

10444511

BOLT,Hex, M4 x 10mm, Cl 5.8, Full Thd

3шт.

17

10794011

NUT,M4, Cl 8

3шт.

18

84293840

BRACKET

1шт.

19

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

2шт.

20

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

21

84335714

GROMMET

1шт.

22

84335716

GROMMET

1шт.

23

10397780

INSULATING RING

1шт.

24

12647824

WASHER,6.15mm ID x 16mm OD x 3mm Thk

3шт.

25

13274024

SCREW,Pozidriv Pan Hd, M5 x 12mm, Cl 8.8, Full Thd

1шт.

26

10450790

RETAINER COLLAR,22mm, Coat, 9mm Bolt Hole, P Type

1шт.

27

84384654

BRACKET

1шт.

Выбрано товаров: 29
