(55.404.0304) - LICENCE PLATE SIDE FENDER MOUNTED - LAMP - ISO (VAR.331958-332958 / 743589)

Запчасти Case IH FARMALL 75C (55.404.0304) - LICENCE PLATE SIDE FENDER MOUNTED - LAMP - ISO (VAR.331958-332958 / 743589) (55) - ELECTRICAL SYSTEMS

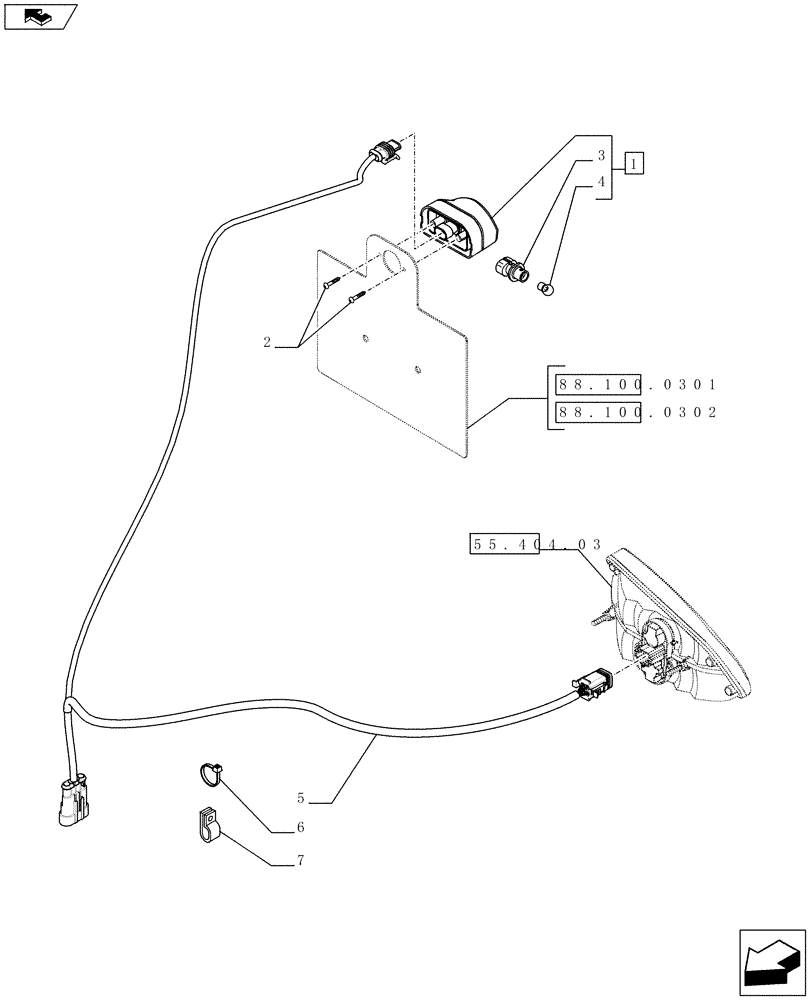

Схема запчастей Case IH FARMALL 75C - (55.404.0304) - LICENCE PLATE SIDE FENDER MOUNTED - LAMP - ISO (VAR.331958-332958 / 743589) (55) - ELECTRICAL SYSTEMS
6
1
3
2
7
55.404.03
home
88.100.0302
88.100.0301
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87301999

NUMBER PLATE LAMP

ASSY, Contains Ref. 3, 4

1шт.

2

15687201

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 13mm

2шт.

3

87304742

HOLDER

1шт.

4

14144190

BULB,W5W, 12V, 5W

1шт.

5

84333640

ELECTRIC CABLE

1шт.

6

14560187

COLLAR,199mm L

1шт.

7

10450090

CLAMP,8mm, Coat, 9mm Bolt Hole, P Type

1шт.

Выбрано товаров: 7
