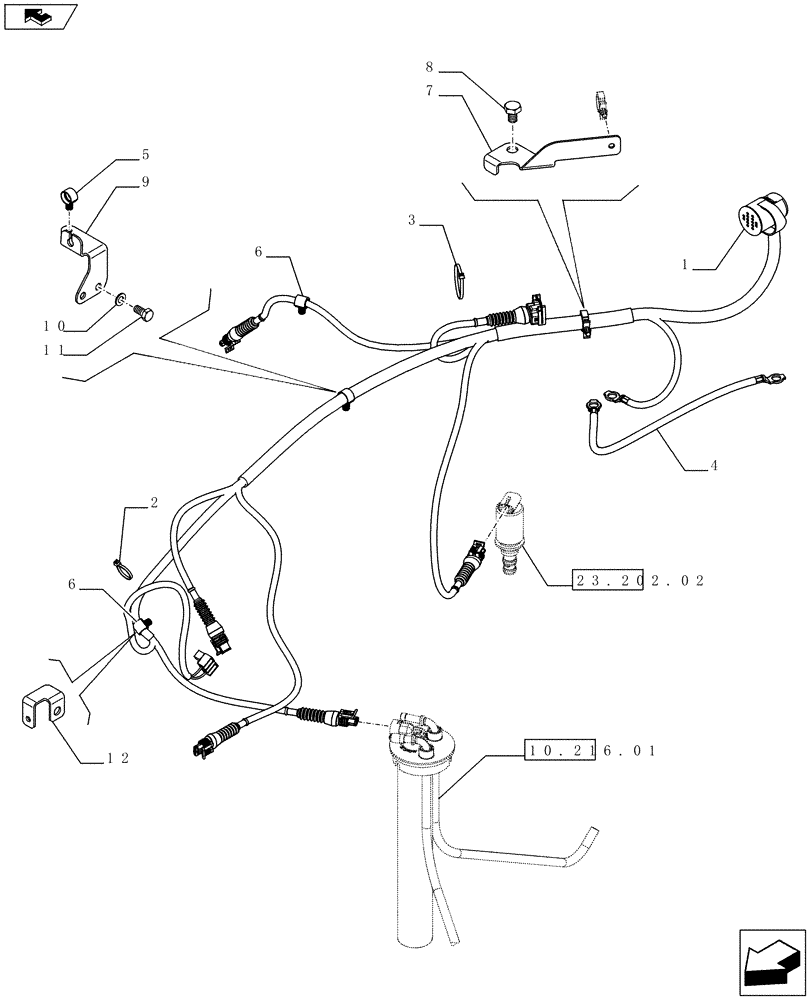

Запчасти Case IH FARMALL 75C (55.100.11) - TRANSMISSION HARNESS - NAR (55) - ELECTRICAL SYSTEMS

1

84297133

WIRE HARNESS

ASSY, Contains Ref. 5, 6

1шт.

2

14560087

CABLE TIE,103mm, Black

CABLE STRAP

1шт.

3

14560187

COLLAR,199mm L

1шт.

4

84249654

ELECTRIC CABLE

1шт.

5

84161523

WIRE CLAMP,12.07mm ID

1шт.

6

84144890

CLIP

2шт.

7

84273785

BRACKET

1шт.

8

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

9

84390071

BRACKET

1шт.

10

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

2шт.

11

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

2шт.

12

84273786

BRACKET

1шт.

Hyd. GBC (Power Shuttle), VAR.332068-332069-334068 (Commercial Feature 743557)

1шт.
