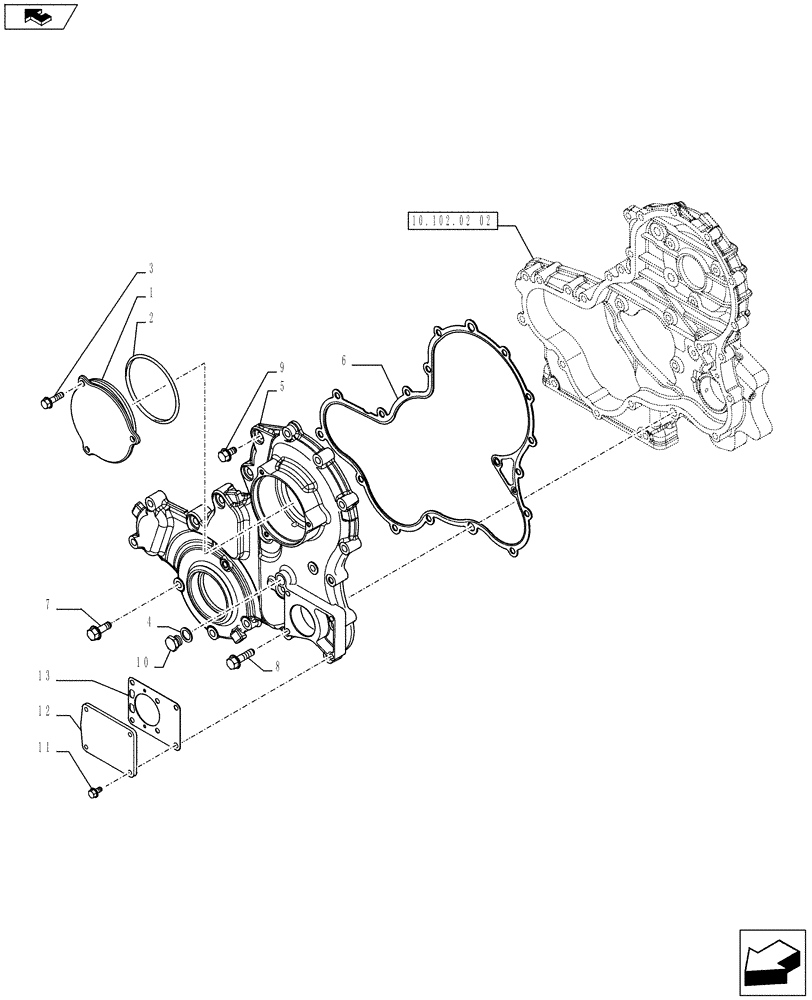

Запчасти Case IH FARMALL 75C (10.102.02[01]) - CYLINDER BLOCK, COVER, FRONT (10) - ENGINE

1

504216814

COVER

1шт.

2

17291280

O-RING,98.84mm ID x 3.53mm

M94.84 Dia x 3.53 Thk

1шт.

3

2853118

BOLT,Hex, M6 x 1 x 18mm

M6 x 18

3шт.

4

2852356

SEALING WASHER

D = 14 x 20 x 1.5 mm

1шт.

5

504240754

COVER

1шт.

6

504242801

GASKET

1шт.

7

2852212

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

4шт.

8

2852151

SCREW,Hex, M8 x 1.25 x 35mm

M8 x 35

15шт.

9

4798845

BOLT,M8 x 1.25 x 16.50mm

2шт.

10

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

11

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

M8 x 1.25 x 18

4шт.

12

564530

COVER

1шт.

13

504092108

GASKET

1шт.
