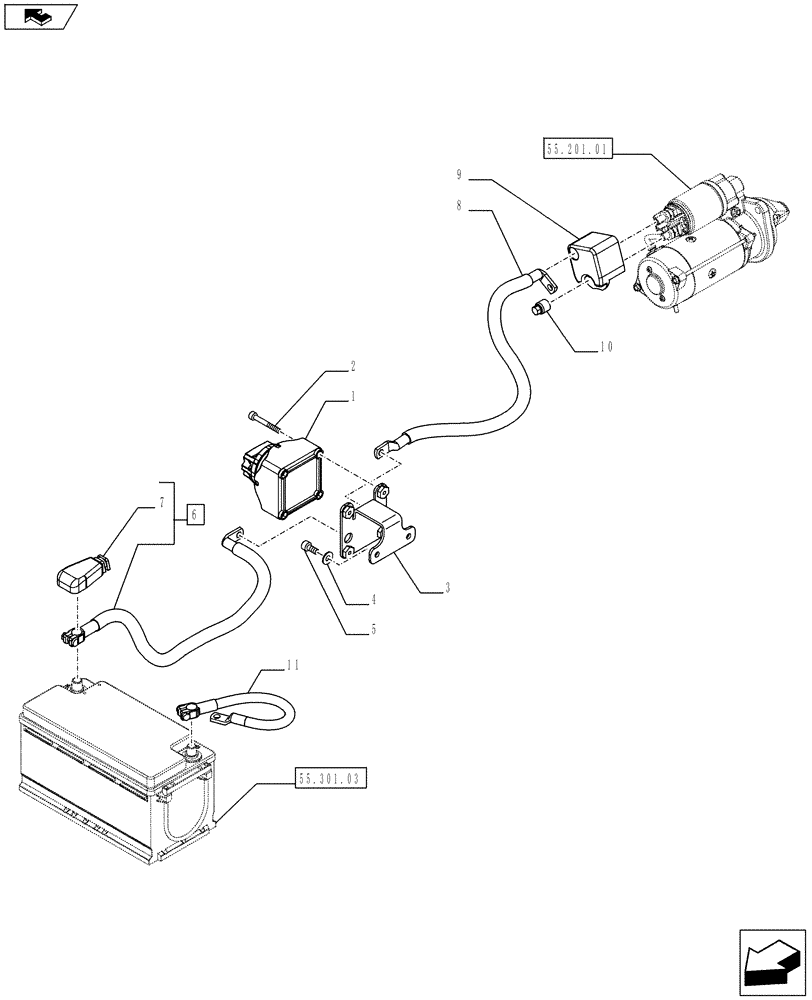

Запчасти Case IH FARMALL 75C (55.100.0201[02]) - MECHANICAL BATTERY ISOLATOR - ISO (VAR.330207) - END YR 09-JUL-2012 (55) - ELECTRICAL SYSTEMS

1

82022881

BATTERY CUT-OUT

1шт.

2

87625620

HEX SOC SCREW,M5 x 40mm, Cl 8.8

M5 x 40

4шт.

3

84323613

BRACKET

1шт.

4

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

2шт.

5

14305724

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

2шт.

6

84294782

POS BATTERY CABLE

ASSY, Contains Ref. 7

1шт.

7

47132196

CAP

1шт.

8

84294790

ELECTRIC CABLE

1шт.

9

87309612

COVER

1шт.

10

5171012

NUT,M10

1шт.

11

84386230

GROUND CABLE

1шт.
