Запчасти Case IH FARMALL 75C (55.100.02) - BATTERY CABLES (55) - ELECTRICAL SYSTEMS

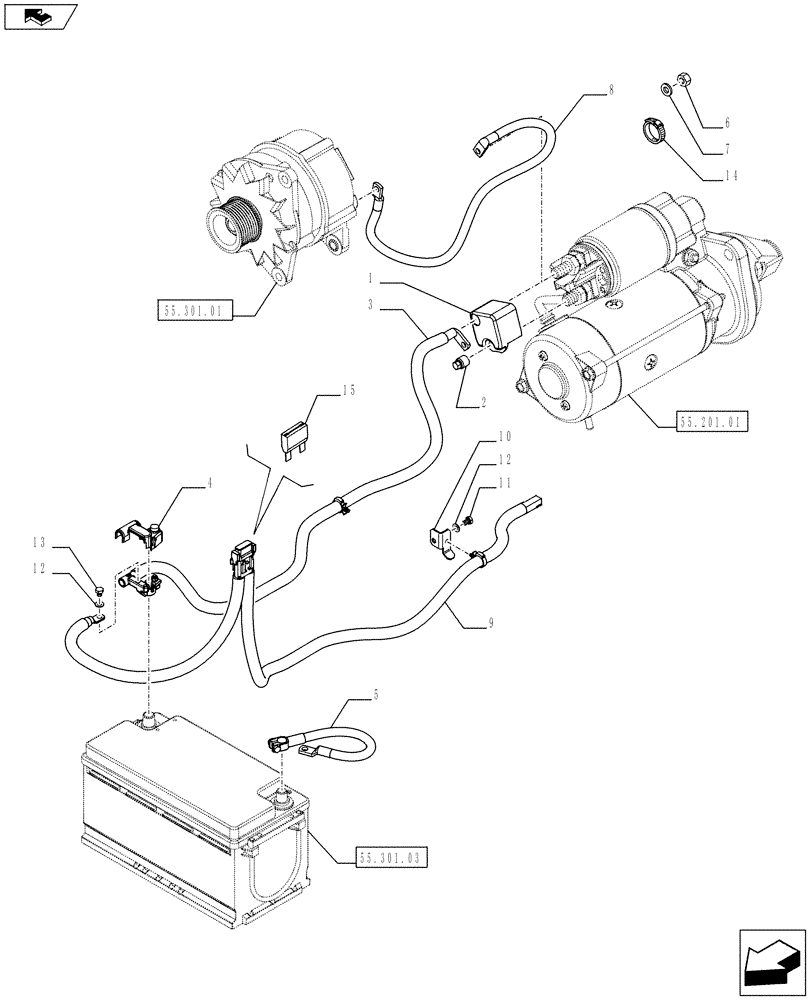

Схема запчастей Case IH FARMALL 75C - (55.100.02) - BATTERY CABLES (55) - ELECTRICAL SYSTEMS
15
55.201.01
55.301.03
3
13
12
14
4
9
5
home
55.301.01
8
10
11
2
12
7
6
1

Артикул

Название

Примечание

Количество

1

87309612

COVER

1шт.

2

5171012

NUT,M10

1шт.

3

84256677

POS BATTERY CABLE

1шт.

4

87526978

PROTECTION CAP

1шт.

5

84386230

GROUND CABLE

1шт.

6

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

1шт.

7

12601179

WASHER,Wave, M5.3

1шт.

8

87370901

CABLE

1шт.

9

84230587

ELECTRIC CABLE

Engine Power Harness, ASSY, Contains Ref. 15

1шт.

W/CAB Models Only

1шт.

9

84350459

WIRE HARNESS

Engine Power Harness, ASSY, Contains Ref. 15

1шт.

L/CAB Models Only

1шт.

10

84230600

BRACKET

1шт.

11

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

12

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

13

16042921

BOLT,Hex, M8 x 10mm, Cl 8.8, Full Thd

1шт.

14

14560187

COLLAR,199mm L

199MM

1шт.

15

5173263

FUSE,50A, Maxi, Red

50 AMP

1шт.

Выбрано товаров: 18
