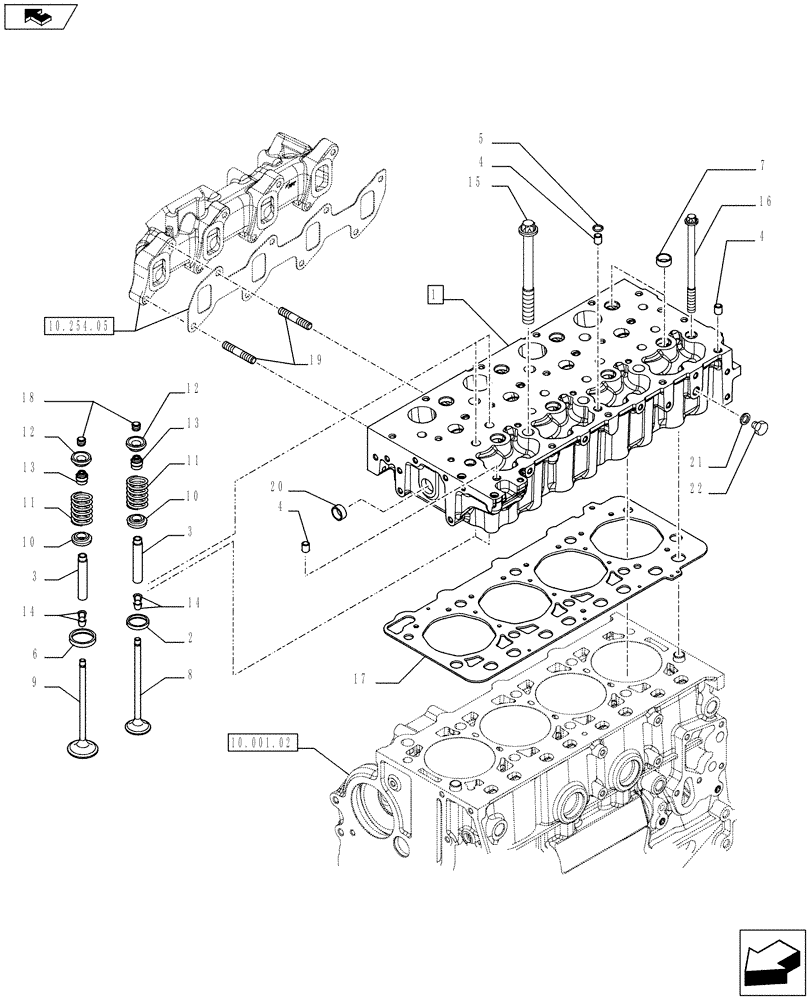

Запчасти Case IH FARMALL 75C (10.101.01) - CYLINDER HEAD (10) - ENGINE

1

504334193

CYLINDER HEAD

ASSY, Contains Ref. 2, 3, 6, 7, 20

1шт.

2

504162949

VALVE SEAT

4шт.

3

4749397

VALVE GUIDE,Std

+0.05 mm

8шт.

3

4749398

VALVE GUIDE,+0.10

+0.1 mm

8шт.

3

4749399

VALVE GUIDE,+0.2

+0.25 mm

8шт.

4

2852481

DOWEL,8.5mm ID

D = 8.5 mm

3шт.

5

17281481

O-RING,10.7mm ID x 2.6mm Width

D = 10.7 mm Thk = 2.6 mm

1шт.

6

504254094

VALVE SEAT

4шт.

7

16988301

PLUG,Lock, 20mm Dia

D = 20 mm

8шт.

8

504162958

STD INLET VALVE

STD ENGINE INLET VALVE

4шт.

9

504162959

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.

10

504178119

RETAINER CUP

8шт.

11

4812347

SPRING,Extension, 33mm OD x 44.6mm L

8шт.

12

4780558

CUP

8шт.

13

40101573

SEAL

8шт.

14

14196670

ROCKER ARM COTTER

D = 7.85 mm

16шт.

15

504081521

BOLT,M15 x 1.5 x 193mm

M15 x 1.5 x 193

6шт.

16

504081533

BOLT,M12 x 1.5 x 165mm

M12 x 1.5 x 165

4шт.

17

504190831

CYLINDER HEAD GASKET

1шт.

18

4838680

CAP

8шт.

19

500380521

STUD,M5 x 12 x 45mm

M8 x 12 x 45

8шт.

20

16990970

PLUG,Lock, 30mm Dia

1шт.

21

2854292

SEALING WASHER,12mm ID x 17mm OD x 1.5mm Thk

1шт.

22

2856546

PLUG

M12 x 1,5

1шт.
