(41.204.01[01]) - STEERING WHEEL - W/CAB

Запчасти Case IH FARMALL 75C (41.204.01[01]) - STEERING WHEEL - W/CAB (41) - STEERING

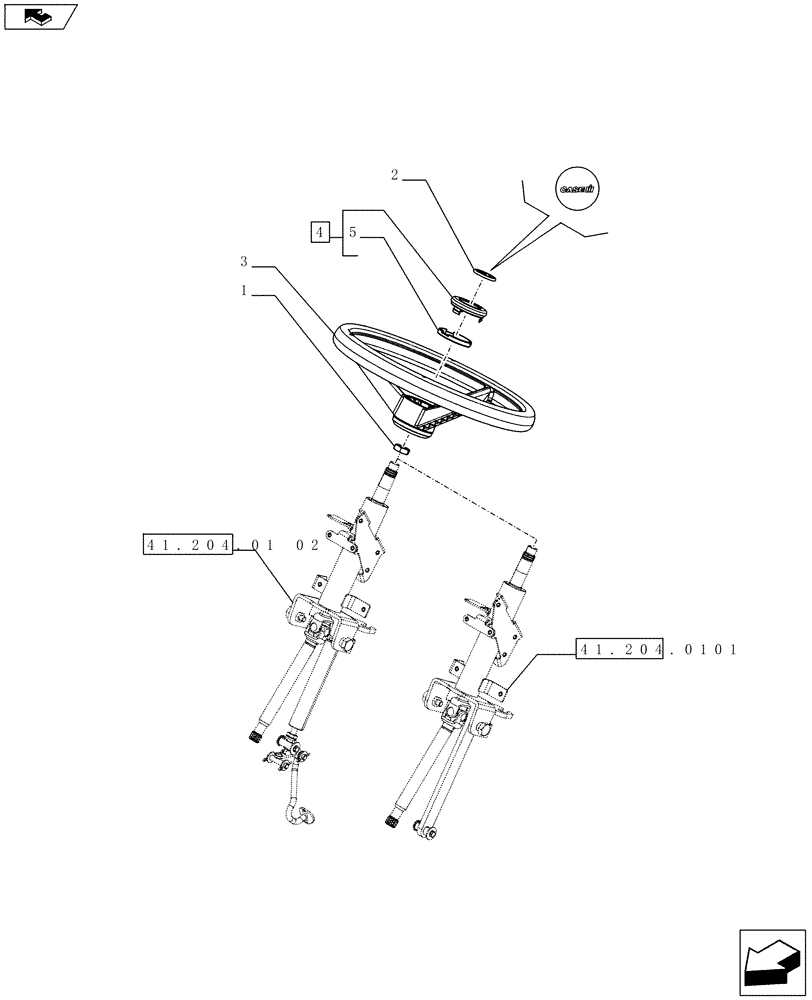

Схема запчастей Case IH FARMALL 75C - (41.204.01[01]) - STEERING WHEEL - W/CAB (41) - STEERING
4
5
41.204.0101
1
3
home
41.204.01 02
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

412624

THIN NUT,Hex, M18, 1.5mm Pitch, 9.00mm High, ZND

1шт.

2

87698705

EMBLEM,44mm OD

1шт.

3

5091213

STEERING WHEEL

1шт.

4

87668104

PLUG,Complete cover

ASSY, Contains Ref. 5

1шт.

5

5131883

GASKET,59mm ID

1шт.
