Запчасти Case IH FARMALL 75C (37.140.0101) - FRONT SUPPORT AND WEIGHTS WITH HOOK (VAR.334215) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

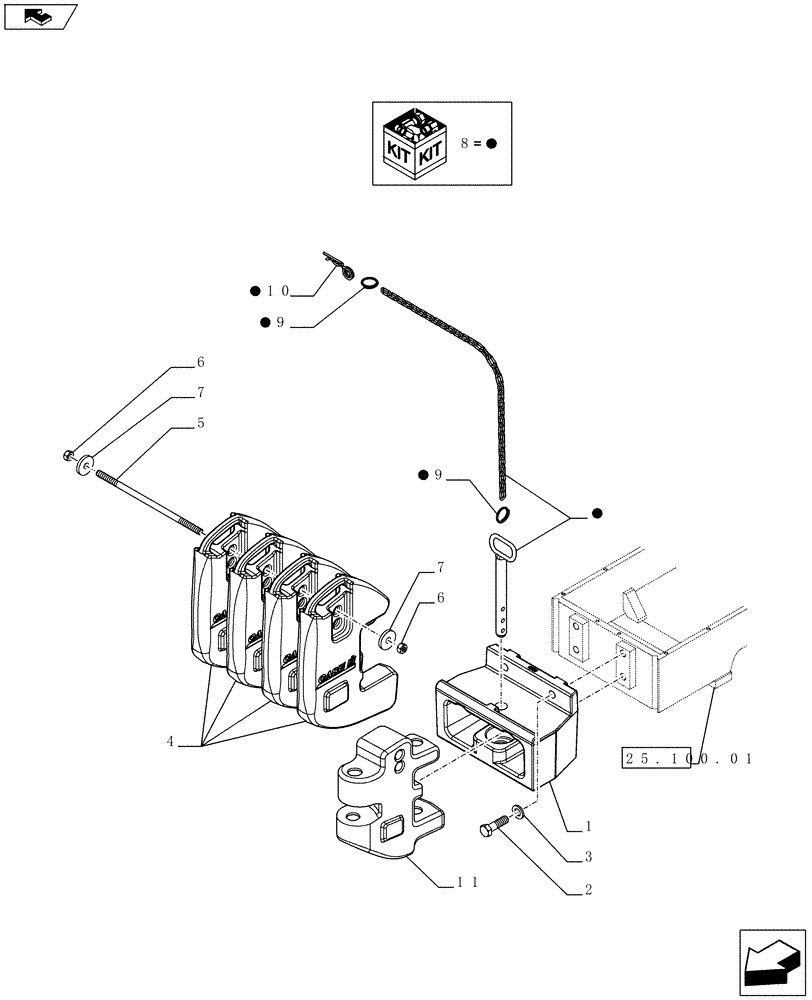

Схема запчастей Case IH FARMALL 75C - (37.140.0101) - FRONT SUPPORT AND WEIGHTS WITH HOOK (VAR.334215) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
8
home
8
3
8
9
6
7
7
2
11
5
9
6
8
8
10
25.100.01
8
4
1

Артикул

Название

Примечание

Количество

1

84348660

SUPPORT

1шт.

2

11125131

BOLT,Hex, M20 x 70, 10.9

4шт.

3

11191774

BELLEVILLE WASHER,M20 Bolt Size x 38mm OD x 4.6mm Thk

20 x 38 x 4.6

4шт.

4

47056220

WEIGHT,40Kg/88Lb

40KG

4шт.

5

82028306

THREADED ROD,M16 x 2 x 385mm L

M16 x 2 x 385

1шт.

6

12163321

NUT,M16, Cl 10

M16 x 2

2шт.

7

44018768

WASHER,17mm ID x 55mm OD x 8mm Thk

2шт.

8

47132417

PIN,3.6mm OD x 64mm L

ASSY, Contains Ref. 9, 10

2шт.

9

44901192

SNAP RING,25mm ID

2шт.

10

44901190

COTTER PIN,6.3mm x 77.6mm L

1шт.

11

87325015

WEIGHT,75Kg/165Lb

75KG

1шт.

Выбрано товаров: 11
