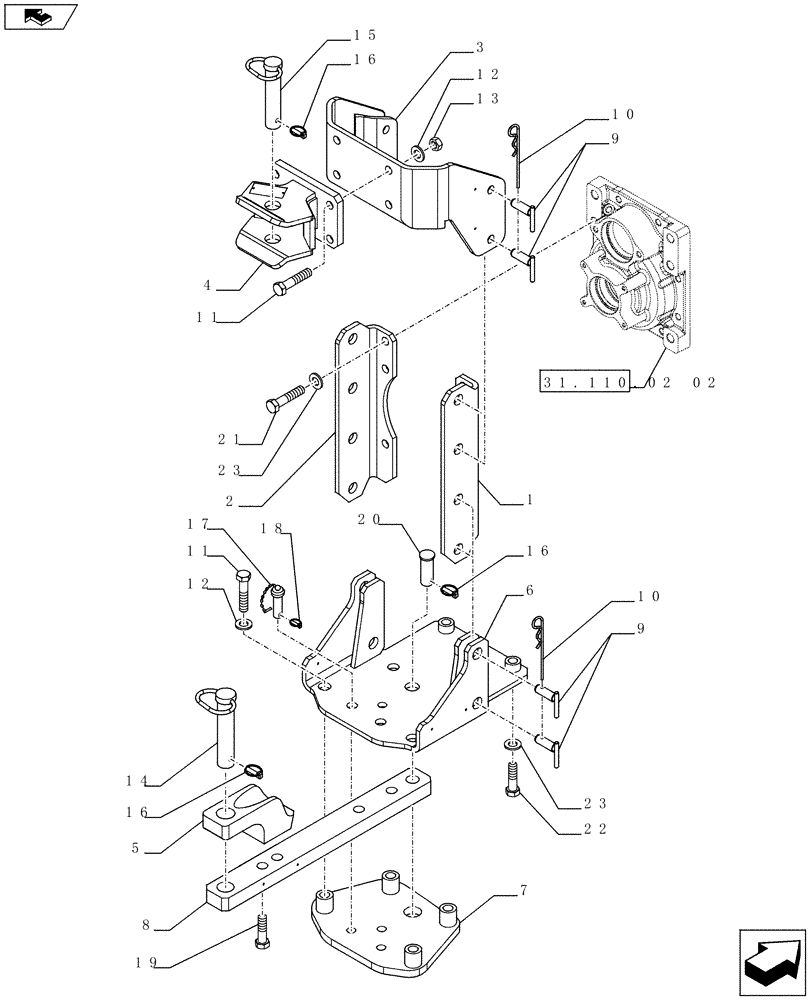

Запчасти Case IH FARMALL 75C (37.100.0103) - TRAILER HITCH CAT. "C" - PIN SUPPORT AND SWINGING DRAWBAR - ISO (VAR.330906) (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84322763

SUPPORT

1шт.

2

84322767

SUPPORT

1шт.

3

84322759

SUPPORT

1шт.

4

84322898

TOW HOOK

1шт.

5

84322897

HITCH BRACKET

1шт.

6

84322982

SUPPORT

1шт.

7

84322983

SUPPORT

1шт.

8

84322896

DRAWBAR

1шт.

9

47130503

PIN,22mm OD x 70mm L

8шт.

10

84322781

HAIR PIN COTTER

4шт.

11

15840524

SCREW,Hex, M16 x 1.5 x 50mm, Cl 8.8, Full Thd

8шт.

12

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

8шт.

13

12164124

NUT,M16 x 1.5, Cl 8

4шт.

14

84322980

HITCH PIN,28mm OD x 155mm L

1шт.

15

84322899

HITCH PIN,28mm OD x 115mm L

1шт.

16

47133246

LOCK PIN,7.5mm OD x 42mm L

3шт.

17

84311147

PIN,16mm OD x 80mm L

2шт.

18

44903774

LOCK PIN,4.8mm OD x 40mm L

2шт.

19

11383624

SCREW

2шт.

20

84311145

PIVOT,32mm OD x 80mm L

1шт.

21

15981324

BOLT,Hex, M16 x 1.5 x 75mm, Cl 8.8

6шт.

22

15981124

BOLT,Hex, M16 x 1.5 x 60mm, Cl 8.8

2шт.

23

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

8шт.
