(35.204.0306[04]) - 3 REAR CONTROL VALVES WITH 8 COUPLERS AND DIVERTER - PIPES - ISO (VAR.339108 / 743750) - END YR 23-APR-2012

Запчасти Case IH FARMALL 75C (35.204.0306[04]) - 3 REAR CONTROL VALVES WITH 8 COUPLERS AND DIVERTER - PIPES - ISO (VAR.339108 / 743750) - END YR 23-APR-2012 (35) - HYDRAULIC SYSTEMS

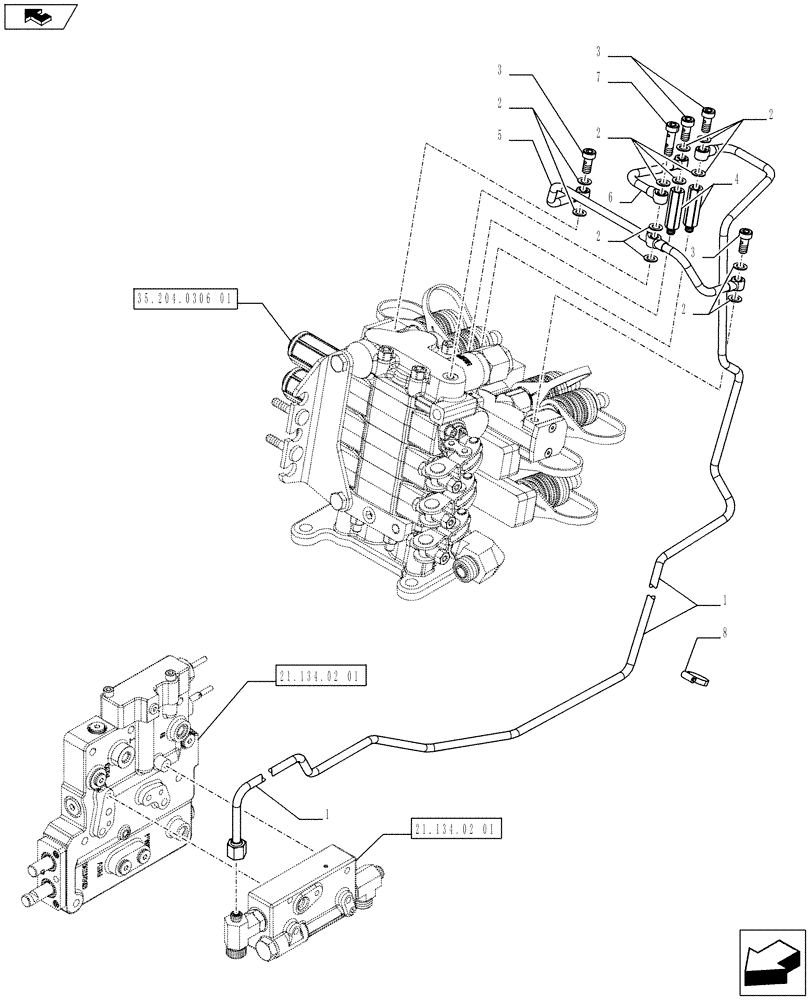

Схема запчастей Case IH FARMALL 75C - (35.204.0306[04]) - 3 REAR CONTROL VALVES WITH 8 COUPLERS AND DIVERTER - PIPES - ISO (VAR.339108 / 743750) - END YR 23-APR-2012 (35) - HYDRAULIC SYSTEMS
2
8
2
6
1
2
5
7
4
2
3
1
2
3
3
home
35.204.0306 01
21.134.02 01
21.134.02 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84373320

RIGID TUBE

Diverter

1шт.

2

10260060

SEALING WASHER,8.2mm ID x 14mm OD x 1mm Thk

12шт.

3

5175070

BANJO BOLT,M8 x 1.25 x 24mm

4шт.

4

5179506

PROP,M8 x 1.25

2шт.

5

5175115

RIGID TUBE

Pressure

1шт.

6

5179545

RIGID TUBE

1шт.

7

5179757

BANJO BOLT

1шт.

8

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

1шт.

Выбрано товаров: 8
