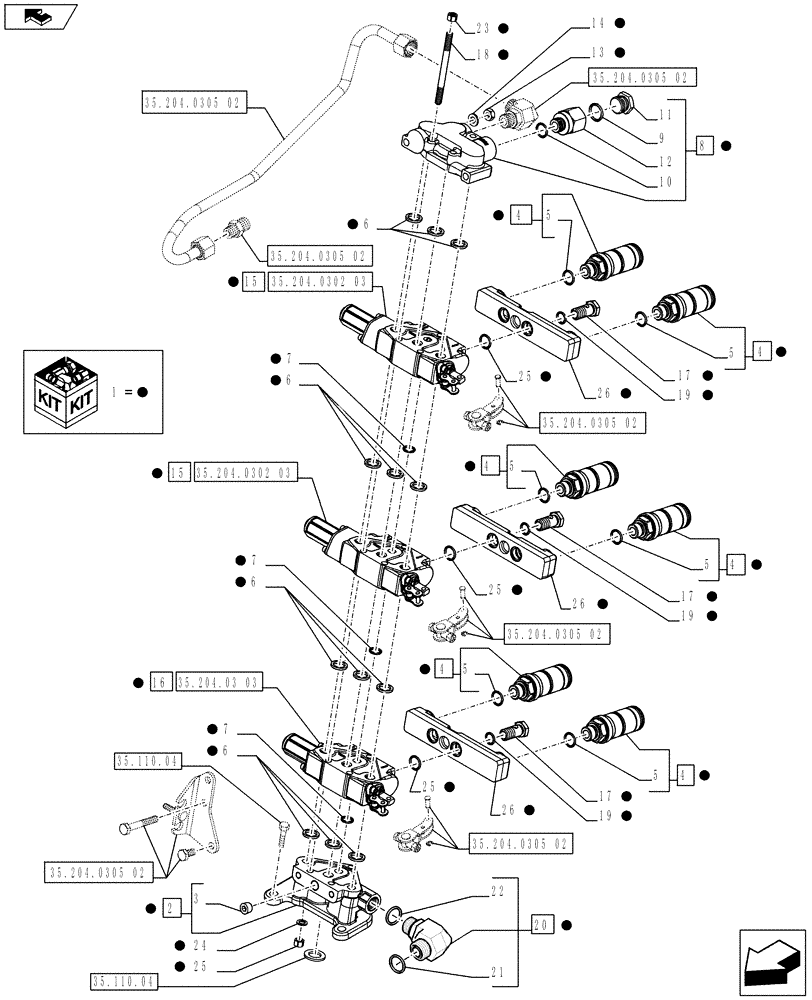

Запчасти Case IH FARMALL 75C (35.204.0305[01]) - 3 REAR CONTROL VALVES WITH 6 DELUXE COUPLERS - CONTROL VALVES AND QUICK COUPLERS - ISO (VAR.334195) - END YR 09-MAY-2016 (35) - HYDRAULIC SYSTEMS

1

84242887

DISTRIBUTOR

ASSY, Contains Ref. 2 - 26

1шт.

See Also Pag. 02

1шт.

2

84254823

PLATE

ASSY, Contains Ref. 3

1шт.

3

10269601

PLUG,M16 x 1.5

1шт.

4

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

ASSY, Contains Ref. 5

6шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

6

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

12шт.

7

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING

3шт.

8

87397264

SUPPORT

ASSY, Contains Ref. 9 - 12

1шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

11

83957506

PLUG,3/4"

1шт.

12

5174043

HYD CONNECTOR,Hex, M22 x 1.5 x 52mm L

1шт.

13

12164714

NUT,M10 x 1.25, Cl 8

1шт.

14

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

15

84285895

DISTRIBUTOR

ASSY

2шт.

16

84236762

DISTRIBUTOR

ASSY

1шт.

17

5168481

BANJO BOLT,M18 x 1.5 x 38mm

6шт.

18

5151505

THREADED ROD,3/8" - 24 x 8-1/4"

3шт.

19

14437985

O-RING,15.3mm ID x 2.4mm

6шт.

20

86579695

90 ELBOW,90 Degree, 1-3/16"-12 ORFS x M22 x 1.5 ORB

ASSY, Contains Ref. 21, 22

1шт.

21

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

22

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

23

5116857

NUT,3/8" - 24

6шт.

24

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

25

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

M2,62 x 18,72

6шт.

26

5185533

HYD CONNECTOR

3шт.
