Запчасти Case IH FARMALL 75C (35.204.0304[02A]) - 3 REAR CONTROL VALVES WITH 6 COUPLERS - SUPPORTS AND PIPES - ISO (VAR.336108) - BEGIN YR 10-MAY-2016 (35) - HYDRAULIC SYSTEMS

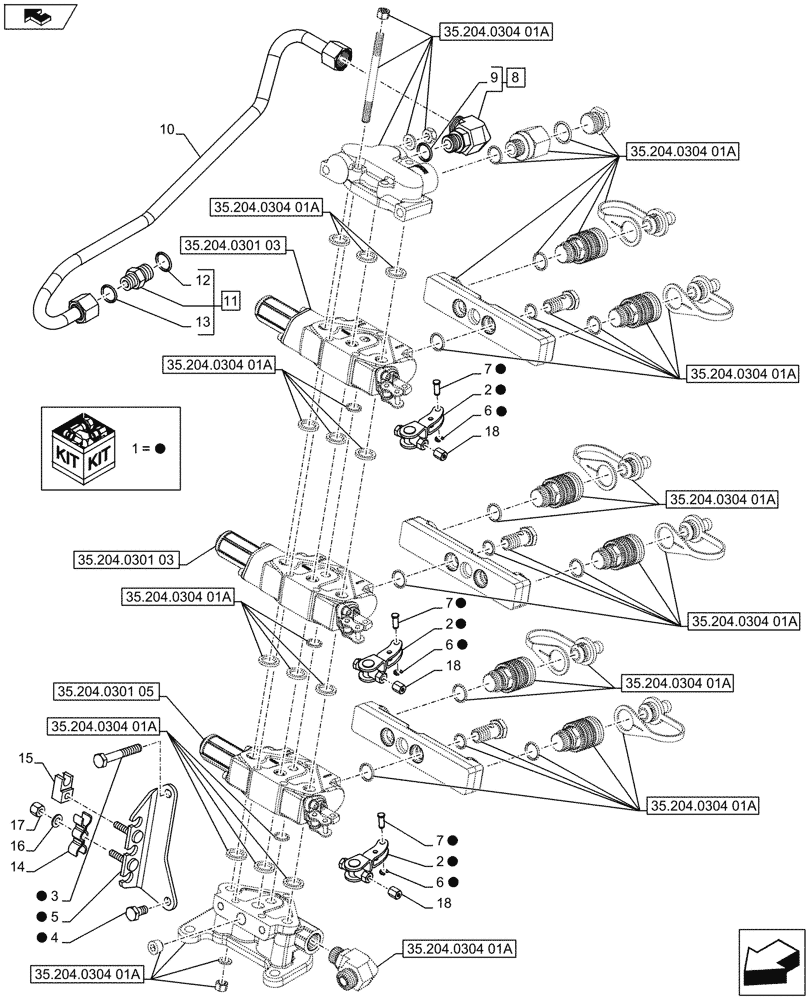

Схема запчастей Case IH FARMALL 75C - (35.204.0304[02A]) - 3 REAR CONTROL VALVES WITH 6 COUPLERS - SUPPORTS AND PIPES - ISO (VAR.336108) - BEGIN YR 10-MAY-2016 (35) - HYDRAULIC SYSTEMS
35.204.0304 01a
4
6
18
11
15
5
7
1
1
2
6
1
1
6
1
12
home
1
1
2
2
18
13
1
18
9
3
1
8
14
17
1
1
7
10
1
1
7
1
16
35.204.0301 05
35.204.0301 03
35.204.0301 03
35.204.0304 01a
35.204.0304 01a
35.204.0304 01a
35.204.0304 01a
35.204.0304 01a
35.204.0304 01a
35.204.0304 01a
35.204.0304 01a
35.204.0304 01a
35.204.0304 01a
35.204.0304 01a
35.204.0304 01a

Артикул

Название

Примечание

Количество

1

47379583

DISTRIBUTOR

ASSY, Contains Ref. 2 - 7

1шт.

See Also Pag. 01A

1шт.

2

84282370

CONTROL LEVER

3шт.

3

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

1шт.

4

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

5

84282287

BRACKET

1шт.

6

11087776

CIRCLIP,Ext., M6, BLO

3шт.

7

5172456

PIN,6mm OD x 20mm L

3шт.

8

5158364

ELBOW,90°, 7/8"-14", M22 X 1.5 ORB

ASSY, Contains Ref. 9

1шт.

9

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

10

84370906

RIGID TUBE

Delivery Lift

1шт.

11

5185046

HYD CONNECTOR,1-14 ORFS x M18 x 1.5 ORB

ASSY, Contains Ref. 12, 13

1шт.

12

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

14

5191951

CLAMP,3 Hoses

1шт.

15

47132225

BRACKET

1шт.

16

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

17

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

2шт.

18

82012528

NUT,Hex, M6 x 1

3шт.

Выбрано товаров: 19
