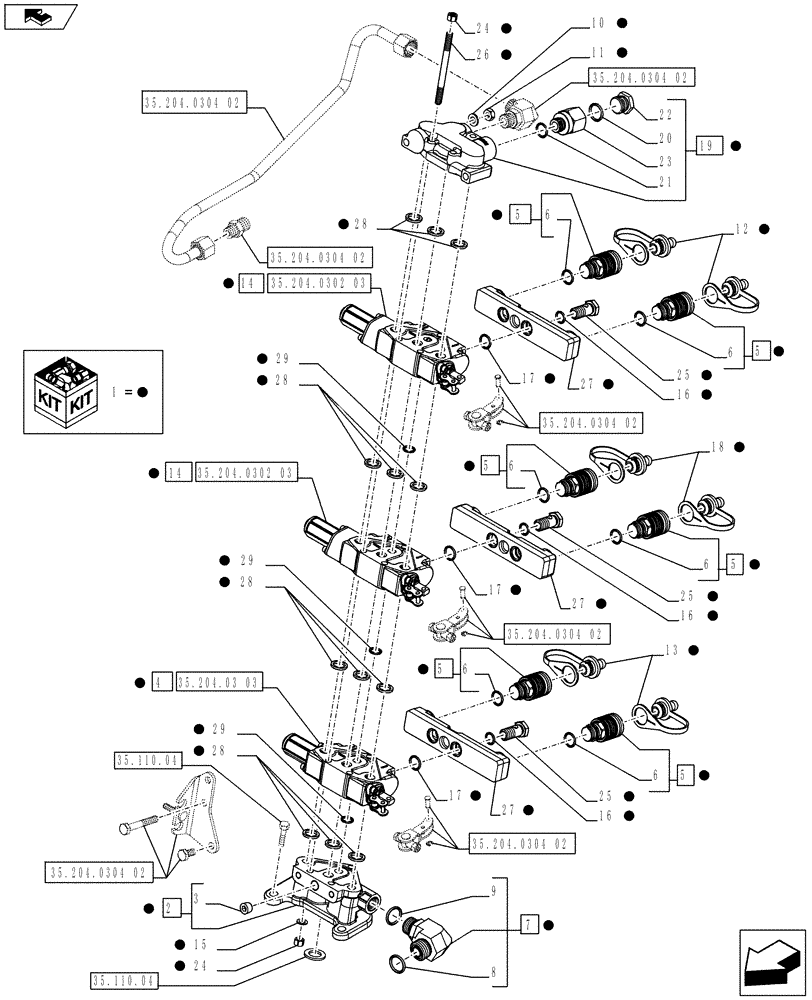

Запчасти Case IH FARMALL 75C (35.204.0304[01]) - 3 REAR CONTROL VALVES WITH 6 COUPLERS - CONTROL VALVES AND QUICK COUPLERS - ISO (VAR.336108) - END YR 09-MAY-2016 (35) - HYDRAULIC SYSTEMS

1

84242888

DISTRIBUTOR

ASSY, Contains Ref. 2 - 29

1шт.

See Also Pag. 02

1шт.

2

84254823

PLATE

1шт.

3

10269601

PLUG,M16 x 1.5

1шт.

4

84236762

DISTRIBUTOR

1шт.

5

5179557

COUPLING, QUICK, FEM

ASSY, Contains Ref. 6

6шт.

6

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

7

86579695

90 ELBOW,90 Degree, 1-3/16"-12 ORFS x M22 x 1.5 ORB

ASSY, Contains Ref. 8, 9

1шт.

8

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

9

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

10

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

11

12164714

NUT,M10 x 1.25, Cl 8

1шт.

12

5179578

PLUG,24mm, Brown

2шт.

13

5179576

PLUG,24mm, Green

2шт.

14

84285895

DISTRIBUTOR

ASSY

2шт.

15

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

16

14437985

O-RING,15.3mm ID x 2.4mm

6шт.

17

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

M2,62 x 18,72

6шт.

18

5179577

PLUG,24mm, Blu

2шт.

19

87397264

SUPPORT

ASSY, Contains Ref. 20 - 23

1шт.

20

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

21

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

22

83957506

PLUG,3/4"

1шт.

23

5174043

HYD CONNECTOR,Hex, M22 x 1.5 x 52mm L

1шт.

24

5116857

NUT,3/8" - 24

6шт.

25

5168481

BANJO BOLT,M18 x 1.5 x 38mm

6шт.

26

5151505

THREADED ROD,3/8" - 24 x 8-1/4"

3шт.

27

5185533

HYD CONNECTOR

3шт.

28

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

12шт.

29

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING

3шт.
