Запчасти Case IH FARMALL 75C (35.204.0302[02A]) - 2 REAR CONTROL VALVES WITH 4 COUPLERS - SUPPORTS AND PIPES - ISO (VAR.334108 / 743569) - BEGIN YR 10-MAY-2016 (35) - HYDRAULIC SYSTEMS

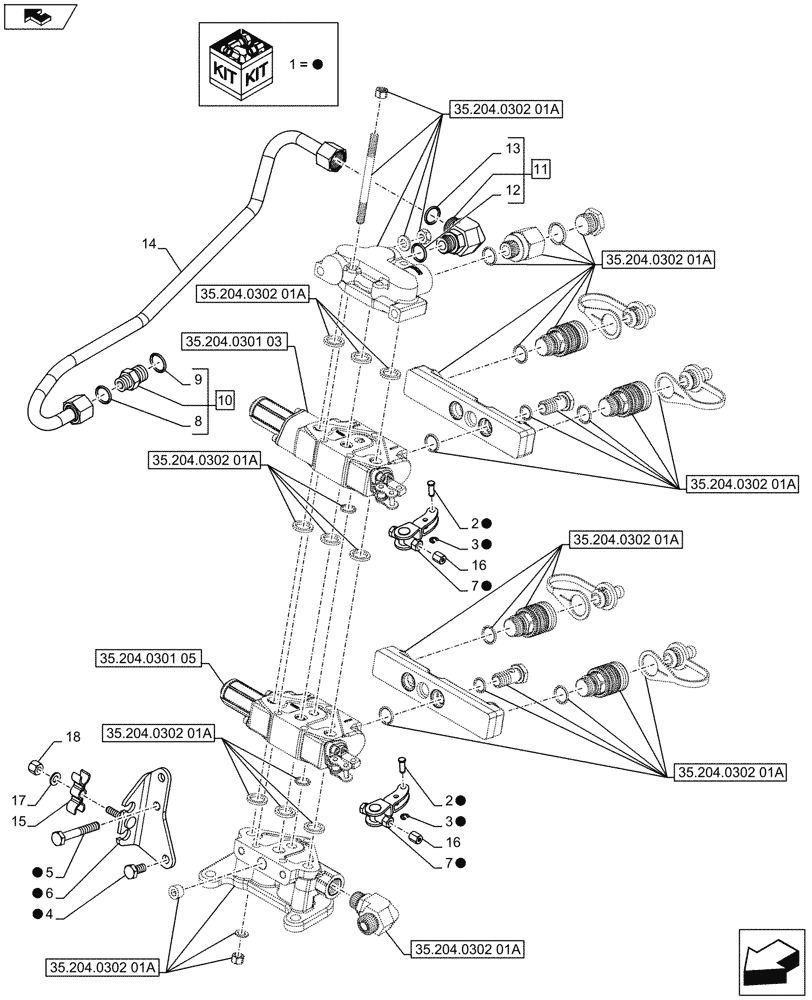

Схема запчастей Case IH FARMALL 75C - (35.204.0302[02A]) - 2 REAR CONTROL VALVES WITH 4 COUPLERS - SUPPORTS AND PIPES - ISO (VAR.334108 / 743569) - BEGIN YR 10-MAY-2016 (35) - HYDRAULIC SYSTEMS
35.204.0301 03
3
5
1
2
1
1
home
1
1
13
16
7
1
18
12
16
1
1
7
9
4
11
1
1
10
8
17
1
2
3
15
6
14
35.204.0302 01a
35.204.0302 01a
35.204.0302 01a
35.204.0302 01a
35.204.0302 01a
35.204.0302 01a
35.204.0302 01a
35.204.0302 01a
35.204.0302 01a
35.204.0302 01a
35.204.0301 05

Артикул

Название

Примечание

Количество

1

47379578

DISTRIBUTOR

ASSY, Contains Ref. 2 - 7

1шт.

See Also Pag. 01A

1шт.

2

5172456

PIN,6mm OD x 20mm L

2шт.

3

11087776

CIRCLIP,Ext., M6, BLO

2шт.

4

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

5

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

1шт.

6

84282305

BRACKET

1шт.

7

84282370

CONTROL LEVER

2шт.

8

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

9

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

10

5185046

HYD CONNECTOR,1-14 ORFS x M18 x 1.5 ORB

ASSY, Contains Ref. 8, 9

1шт.

11

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

ASSY, Contains Ref. 12, 13

1шт.

12

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

14

84362545

RIGID TUBE

Delivery Lift

1шт.

15

5191951

CLAMP,3 Hoses

1шт.

16

82012528

NUT,Hex, M6 x 1

2шт.

17

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

18

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

1шт.

Выбрано товаров: 19
