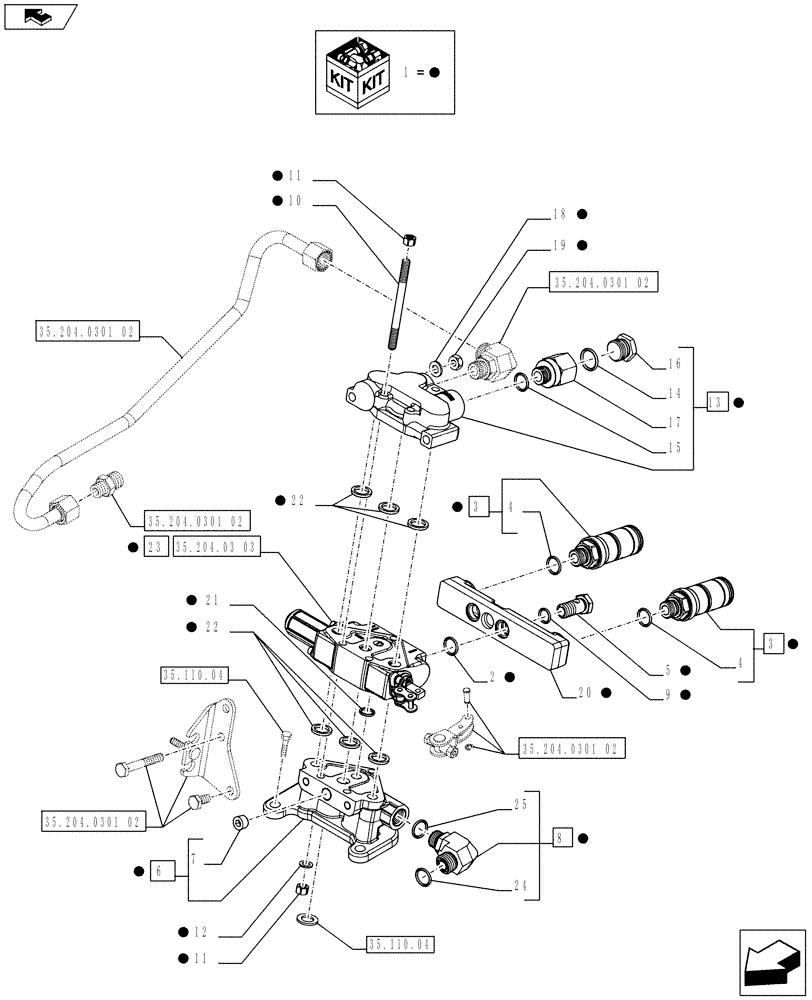

Запчасти Case IH FARMALL 75C (35.204.0301[01]) - 1 REAR CONTROL VALVE WITH 2 DELUXE COUPLERS - CONTROL VALVE AND QUICK COUPLERS - END YR 09-MAY-2016 (35) - HYDRAULIC SYSTEMS

1

84243406

DISTRIBUTOR

ASSY, Contains Ref. 2, 3, 5, 6, 8 - 13, 18 - 23

1шт.

See Also Pag. 02

1шт.

2

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.

3

5179558

COUPLING, QUICK, FEM,Hex, M22 x 1.5 x 110.8mm L

ASSY, Contains Ref. 4

2шт.

4

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

5

5168481

BANJO BOLT,M18 x 1.5 x 38mm

2шт.

6

84254823

PLATE

ASSY, Contains Ref. 7

1шт.

7

10269601

PLUG,M16 x 1.5

1шт.

8

86579695

90 ELBOW,90 Degree, 1-3/16"-12 ORFS x M22 x 1.5 ORB

ASSY, Contains Ref. 24, 25

1шт.

9

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

10

5150104

STUD,3/8" - 24 x 5"

3шт.

11

5116857

NUT,3/8" - 24

6шт.

12

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

3шт.

13

87397264

SUPPORT

ASSY, Contains Ref. 14 - 17

1шт.

14

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

15

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

16

83957506

PLUG,3/4"

1шт.

17

5174043

HYD CONNECTOR,Hex, M22 x 1.5 x 52mm L

1шт.

18

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

19

12164714

NUT,M10 x 1.25, Cl 8

1шт.

20

5185533

HYD CONNECTOR

1шт.

21

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING

1шт.

22

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING 19 x 3.50 x 3

6шт.

23

84236762

DISTRIBUTOR

ASSY

1шт.

24

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

25

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.
