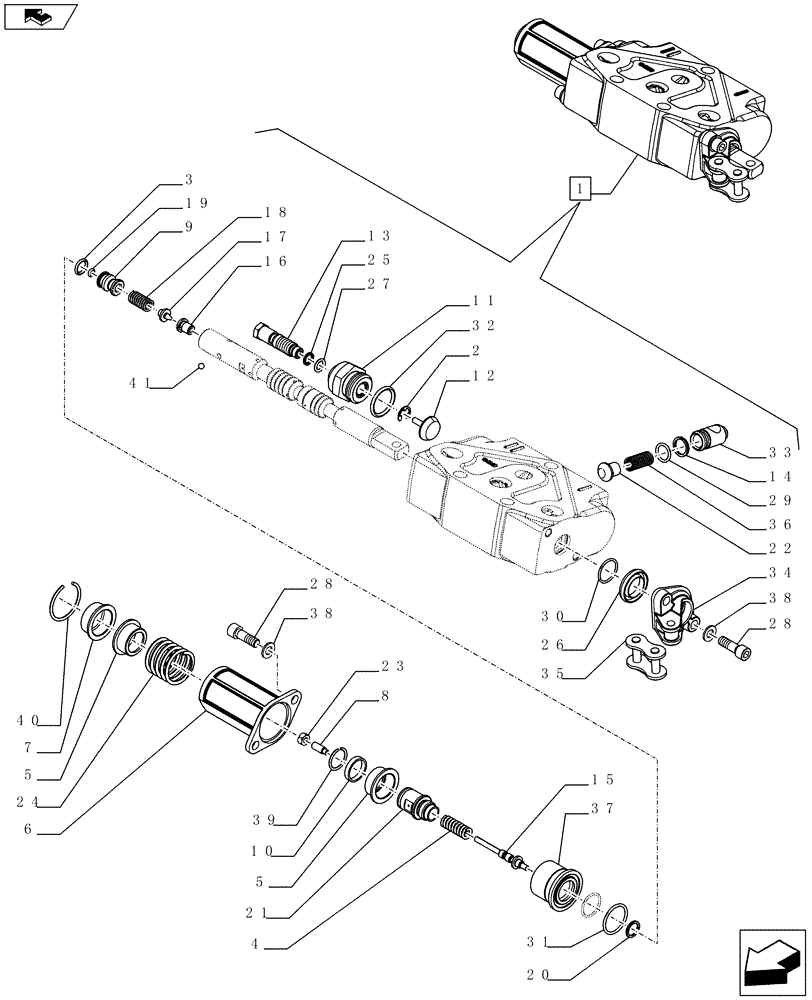

Запчасти Case IH FARMALL 75C (35.204.03[03]) - REMOTE CONTROL VALVE (S/D WITH KICK-OUT) - BREAKDOWN (35) - HYDRAULIC SYSTEMS

1

84236762

DISTRIBUTOR

ASSY, Contains Ref. 2-41

1шт.

2

87016950

SNAP RING,M7, Ext

1шт.

3

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

4

5143561

SPRING,Compression, 9mm OD x 27mm L

1шт.

5

5143564

SPRING CUP,19mm ID x 27mm OD x 10.4mm L

2шт.

6

5143566

FLANGE COVER CAP,28.8mm ID x 32mm OD x 60mm L

1шт.

7

5143567

COVER

1шт.

8

5155484

ADJUSTMENT SCREW,M5 x 0.8 x 14mm

1шт.

9

5163363

BUSHING,5.5mm ID x 12mm OD x 16mm L

1шт.

10

5143565

SPACER,16mm ID x 18.5mm OD x 3.5mm L

1шт.

11

5136346

BODY,7/8" - 14

1шт.

12

5136347

PIN,3.8mm OD x 15mm L

1шт.

13

5136348

PIN,10mm OD x 37mm L

1шт.

14

5138508

BACK-UP RING,Back Up, 10mm ID x 12mm OD x 10mm Thk

1шт.

15

5143557

PIN,5.5mm OD x 52.5mm L

1шт.

16

5143554

PLUG,Slot, M7 x 0.75

1шт.

17

5143555

PIN,5.5mm OD x 12mm L

1шт.

18

5143556

SPRING,Compression, 9mm OD x 21.2mm L

1шт.

19

276447

O-RING,1.78mm Thk x 2.54mm ID

1шт.

20

5143560

RING,9.91mm ID x 12.61mm OD x 1.2mm Thk

1шт.

21

5143562

PLUG,Remote spool, M14 x 1

1шт.

22

5116886

PIN,9.4mm OD x 10.5mm L

1шт.

23

86509265

NUT,M5, Cl 10

M5

1шт.

24

5116893

SPRING,Compression, 27mm OD x 43mm L

1шт.

25

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

26

5116889

SCRAPER RING,15.6mm ID x 25.4mm OD x 4.8mm Thk

1шт.

27

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

1шт.

28

5124338

HEX SOC SCREW,6.35mm OD x 19mm L

4шт.

29

14453081

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

30

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

31

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

32

86977728

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

33

5135835

VALVE GUIDE,14.25mm OD x 28.5mm L

1шт.

34

84283452

SUPPORT

1шт.

35

87658153

LINK,19.05mm Pitch

1шт.

36

5116884

SPRING,Compression, 6mm OD x 16mm L

1шт.

37

5179137

BUSHING,16mm ID x 27mm OD x 23.5mm L

1шт.

38

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

39

13397776

SNAP RING,M16, Int

1шт.

40

13421276

SNAP RING,M28, Int

1шт.

41

20063420

BALL,3.96mm OD, Gr 100

3шт.
