Запчасти Case IH FARMALL 75C (35.204.03[02]) - 1 REAR CONTROL VALVE WITH 2 COUPLERS - SUPPORTS AND PIPES - ISO - END YR 09-MAY-2016 (35) - HYDRAULIC SYSTEMS

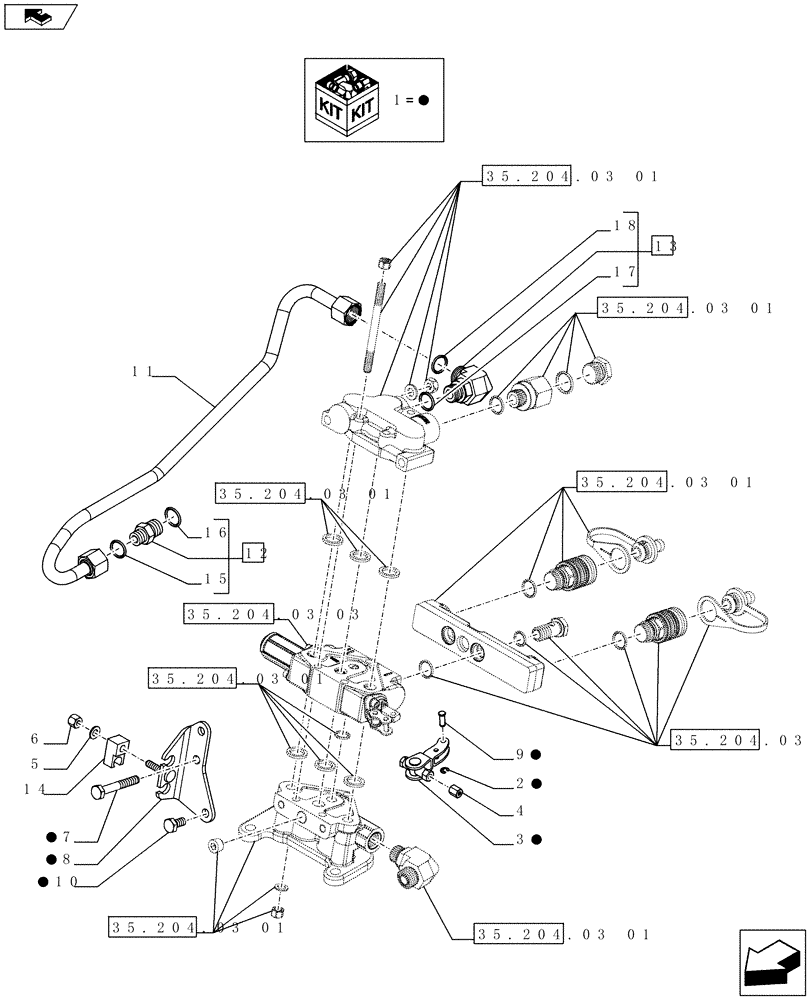

Схема запчастей Case IH FARMALL 75C - (35.204.03[02]) - 1 REAR CONTROL VALVE WITH 2 COUPLERS - SUPPORTS AND PIPES - ISO - END YR 09-MAY-2016 (35) - HYDRAULIC SYSTEMS
5
16
1
8
10
2
home
35.204.03 01
17
4
35.204.03 01
35.204.03 01
35.204.03 01
35.204.03 01
35.204.03 03
35.204.03 01
35.204.03 01
35.204.03 01
1
6
7
14
9
1
1
1
15
3
1
12
1
13
18
1
11

Артикул

Название

Примечание

Количество

1

84243402

DISTRIBUTOR

ASSY, Contains Ref. 2, 3, 7 - 10

1шт.

See Also Pag. 01

1шт.

2

11087776

CIRCLIP,Ext., M6, BLO

1шт.

3

84282370

CONTROL LEVER

1шт.

4

82012528

NUT,Hex, M6 x 1

1шт.

5

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

6

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

1шт.

7

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

1шт.

8

84282305

BRACKET

1шт.

9

5172456

PIN,6mm OD x 20mm L

1шт.

10

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

11

84362538

RIGID TUBE

Delivery Lift

1шт.

12

5185046

HYD CONNECTOR,1-14 ORFS x M18 x 1.5 ORB

ASSY, Contains Ref. 15, 16

1шт.

13

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

ASSY, Contains Ref. 17, 18

1шт.

14

47132225

BRACKET

1шт.

15

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

16

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

17

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

18

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 19
