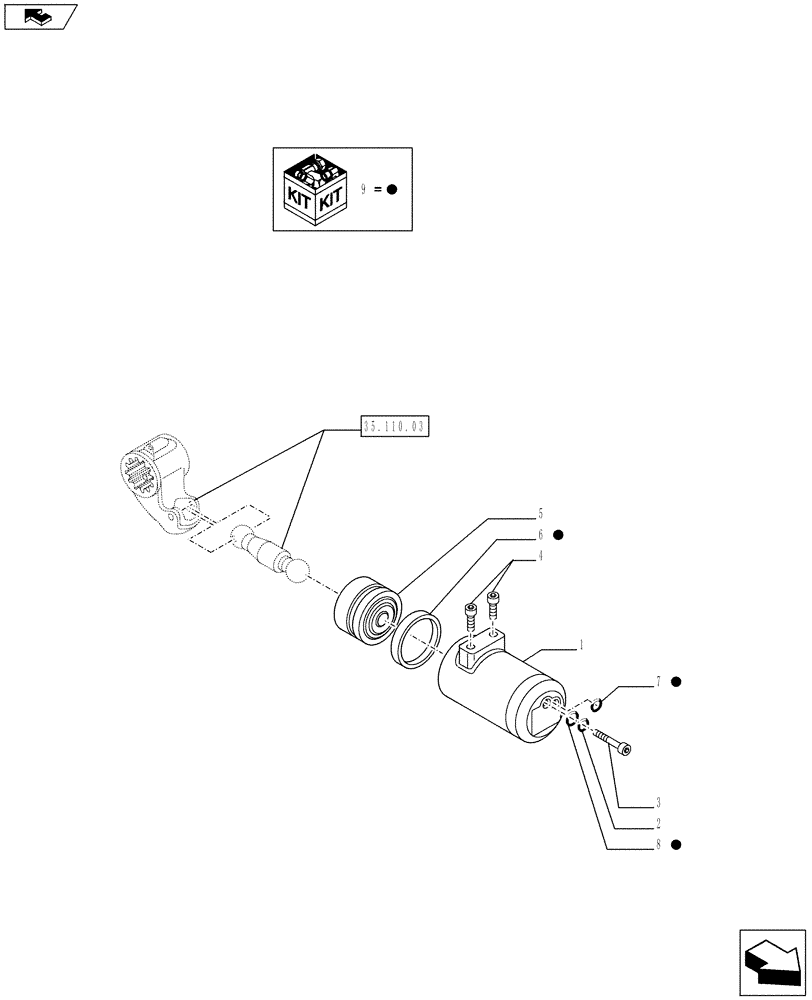

Запчасти Case IH FARMALL 75C (35.110.02) - HYDRAULIC LIFT - CYLINDERS AND PISTON (35) - HYDRAULIC SYSTEMS

1

84188530

CYLINDER

1шт.

2

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

D=12

1шт.

3

84188531

SCREW

1шт.

4

14422321

HEX SOC SCREW,M12 x 45mm, Cl 8.8, Full Thd

2шт.

5

84188529

PISTON

1шт.

6

84262508

SEALING RING

SEALRING

1шт.

7

84188533

SEALING RING,11.91mm ID x 2.62 Thk

SEALRING

1шт.

8

84188534

SEALING RING,15.54mm ID x 2.62 Thk

SEALRING

1шт.

9

84262551

SEAL KIT

ASSY, Contains Ref. 6-8

1шт.

See Also Group 35.110.01 pag.01, 35.110.01 pag.03 and 35.110.03 pag.01

1шт.
