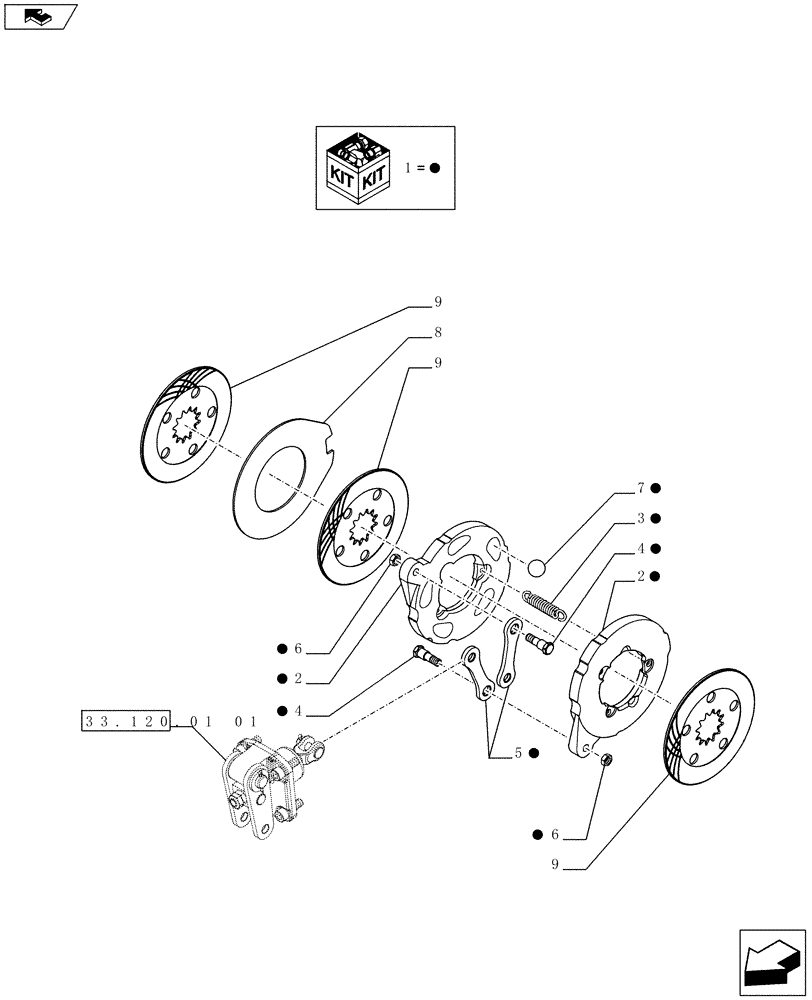

Запчасти Case IH FARMALL 75C (33.120.01[03]) - TRANSMISSION BRAKE - BRAKE CALIPER AND DISCS (33) - BRAKES & CONTROLS

1

5099136

BRAKE

ASSY, Contains Ref. 2-7

2шт.

2

5099137

BRAKE DISC

2шт.

3

5086612

SPRING,20.4mm OD x 24mm, Free Length

3шт.

4

5086610

PIN,12.3mm OD x 40.7mm L

2шт.

5

5086609

LEVER

2шт.

6

5086611

NUT,3/8"-24 UNF

2шт.

7

20063060

BALL,M22

5шт.

8

5119327

BRAKE DISC,94.3mm ID x 171.1mm OD x 2.65mm Thk

2шт.

9

84275022

BRAKE DISC

6шт.
