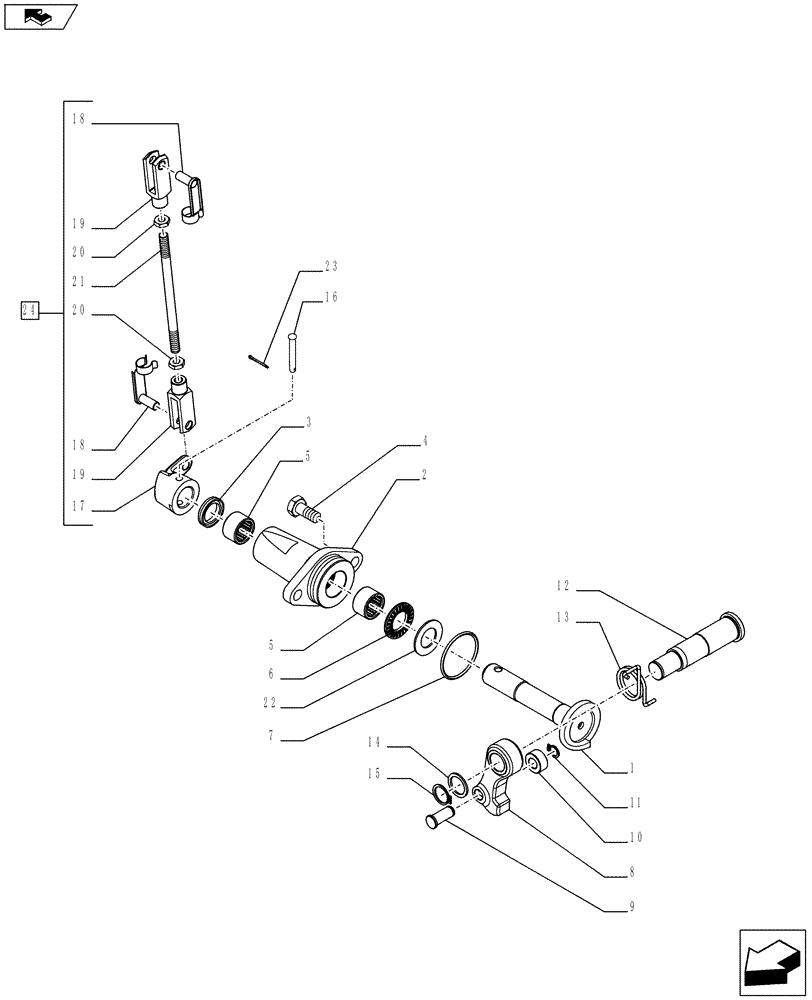

Запчасти Case IH FARMALL 75C (33.110.01) - PARKING BRAKE - BRAKE TIE-ROD AND CAM - NAR - W/CAB (33) - BRAKES & CONTROLS

1

84386862

CAM

1шт.

2

84421394

SUPPORT

1шт.

3

84200030

SEALING RING,20mm ID x 28mm OD x 5.5mm Thk

SEALRING 20 x 28 x 5.5

1шт.

4

15970731

BOLT,Hex, M10 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

5

596031

NEEDLE BEARING,Needle, 20mm ID x 16mm OD x 16mm W

2шт.

6

84236170

ROLLER BEARING,20mm ID x 35mm OD x 2mm W

1шт.

7

14458980

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1шт.

8

84236175

LEVER

1шт.

9

84236177

PIN

1шт.

10

84236176

ROLLER,20mm OD x 9.5mm L

1шт.

11

11065976

CIRCLIP,M10, Ext

1шт.

12

84469886

PIVOT

1шт.

13

84392531

SPRING,Torque, 30mm OD x 44mm L

1шт.

14

84361122

WASHER,18.3mm ID x 24mm OD x 1.5mm Thk

1шт.

15

11066671

LOCKING RING,18mm OD

1шт.

16

84402818

CLEVIS PIN

1шт.

17

84427392

LEVER

1шт.

18

5154438

PIN,8mm OD x 19mm L

2шт.

19

5154646

CLEVIS,M8

2шт.

20

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

2шт.

21

84427405

TIE-ROD

1шт.

22

84381305

WASHER,20mm ID x 35mm OD

1шт.

23

10734301

COTTER PIN,M2 x 18

1шт.

24

84427404

TIE-ROD

1шт.
