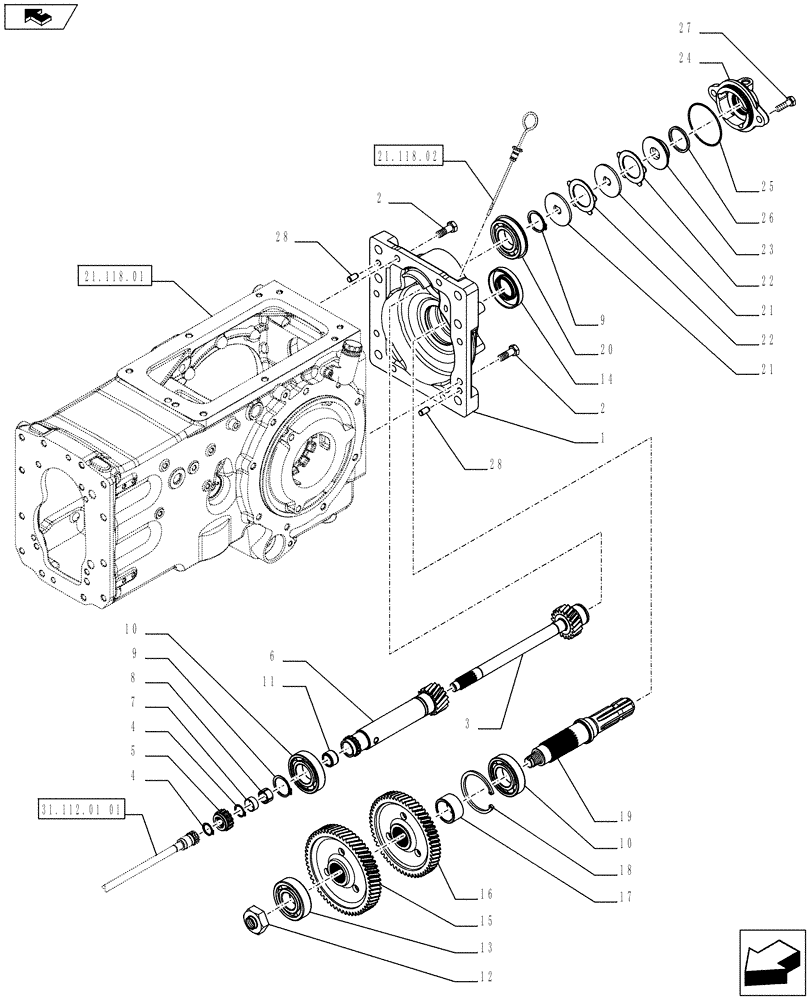

Запчасти Case IH FARMALL 75C (31.112.0101[02]) - POWER TAKE-OFF (540-540E RPM) FOR POWER SHUTTLE - COVER, SHAFTS AND GEARS (VAR.334804 / 743519; VAR.336814 / 743566) (31) - IMPLEMENT POWER TAKE OFF

1

84226358

COVER

1шт.

2

15540524

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8

8шт.

3

84235057

PTO SHAFT

1шт.

4

11067076

SNAP RING,M22, Ext

2шт.

5

87522322

GEAR

1шт.

6

84226388

SHAFT

1шт.

ISO Market Models Only

1шт.

6

84236757

SHAFT

1шт.

NAR Market, 75C Model Only

1шт.

7

84272727

SPACER

1шт.

8

84272722

BEARING

1шт.

9

11068876

SNAP RING,M40, Ext

2шт.

10

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

2шт.

11

5176908

NEEDLE BEARING,22mm ID x 28mm OD x 17mm W

1шт.

12

5159091

RING NUT

1шт.

13

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

1шт.

14

5125897

OIL SEAL,40mm ID x 80mm OD x 12mm Thk

1шт.

15

84226363

GEAR

1шт.

ISO Market Models Only

1шт.

15

84236754

GEAR

1шт.

NAR Market, 75C Model Only

1шт.

16

84226365

GEAR

1шт.

17

84226364

SPACER

1шт.

18

5164109

CIRCLIP

1шт.

19

84226361

PTO SHAFT

1шт.

20

28996320

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

21

84239847

DISC

2шт.

22

84239848

DISC

2шт.

23

84239846

PISTON

1шт.

24

84235044

COVER

1шт.

25

14461080

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

26

84239850

SEALING RING,44.8mm ID x 51.6mm OD x 3.4mm Thk

SEALRING

1шт.

27

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

2шт.

28

4988170

PIN,10mm OD x 20mm L

M10 x 20

2шт.
