(31.101.0101[02]) - POWER TAKE-OFF (540-540E) - POWER TAKE-OFF CONTROLS - NAR (VAR.333814-336814 / 743566)

Запчасти Case IH FARMALL 75C (31.101.0101[02]) - POWER TAKE-OFF (540-540E) - POWER TAKE-OFF CONTROLS - NAR (VAR.333814-336814 / 743566) (31) - IMPLEMENT POWER TAKE OFF

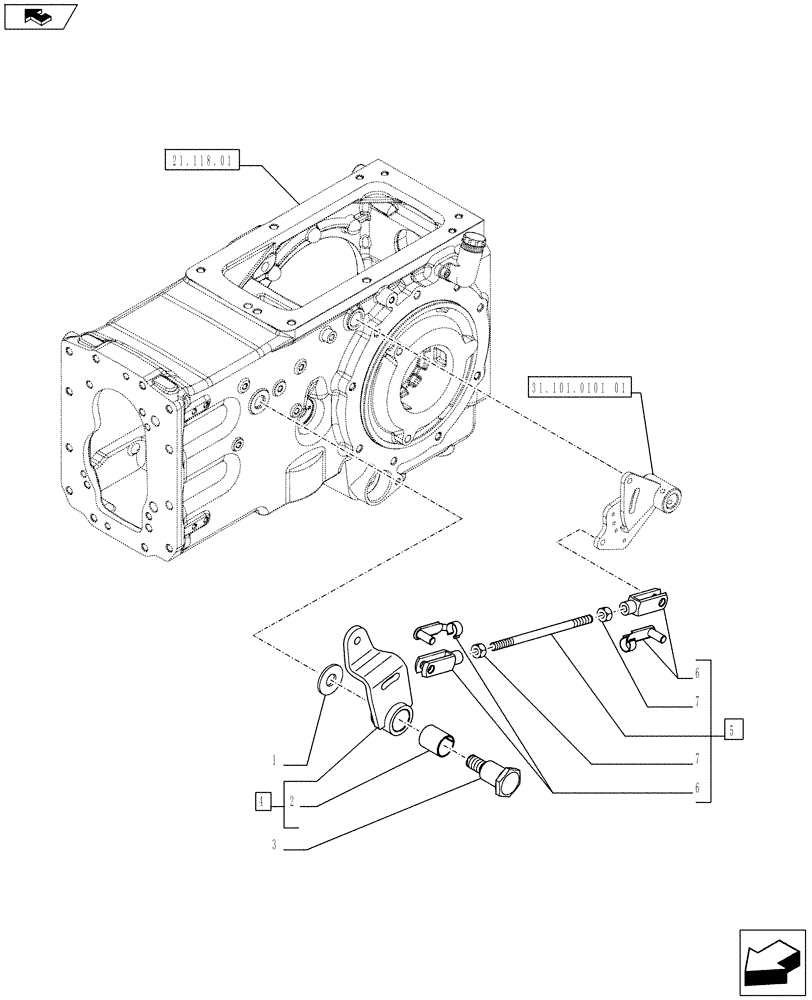

Схема запчастей Case IH FARMALL 75C - (31.101.0101[02]) - POWER TAKE-OFF (540-540E) - POWER TAKE-OFF CONTROLS - NAR (VAR.333814-336814 / 743566) (31) - IMPLEMENT POWER TAKE OFF
1
7
6
4
21.118.01
6
3
2
home
31.101.0101 01
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

12646824

WASHER,10.2mm ID x 25mm OD x 2mm Thk

1шт.

2

5129030

BUSHING,16.04mm ID x 18mm OD x 20mm L

1шт.

3

84297875

PIN

1шт.

4

84390065

CONTROL LEVER

ASSY, Contains Ref. 2

1шт.

5

84297870

LINKAGE

ASSY, Contains Ref. 6, 7

1шт.

6

5132588

CLEVIS

2шт.

7

10720111

NUT,M6, Cl 8

2шт.
