(27.106.05) - TRANSMISSION, COVERS AND SUPPORTS

Запчасти Case IH FARMALL 75C (27.106.05) - TRANSMISSION, COVERS AND SUPPORTS (27) - REAR AXLE SYSTEM

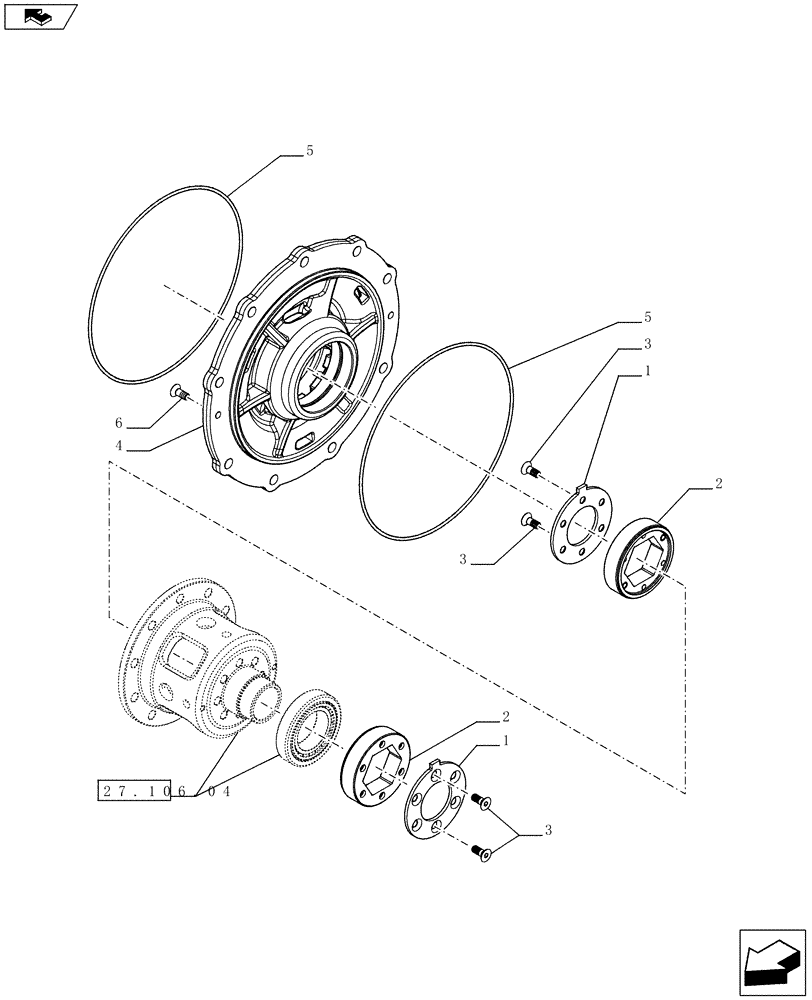

Схема запчастей Case IH FARMALL 75C - (27.106.05) - TRANSMISSION, COVERS AND SUPPORTS (27) - REAR AXLE SYSTEM
5
1
4
27.106.04
2
3
home
3
3
6
2
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5087674

LOCKING RING

2шт.

2

5124642

HEX SOC SCREW,FLAT, M8 x 1.25 x 20mm, Cl 8.8

4шт.

3

82824282

LOCK NUT

2шт.

4

84226343

SPACER

1шт.

5

87616310

O-RING,245mm ID x 3.53mm Width

3.53 x 245.6

2шт.

6

5124642

HEX SOC SCREW,FLAT, M8 x 1.25 x 20mm, Cl 8.8

2шт.
