(25.100.0801) - 2WD FRONT AXLE - BODY (VAR.330851)

Запчасти Case IH FARMALL 75C (25.100.0801) - 2WD FRONT AXLE - BODY (VAR.330851) (25) - FRONT AXLE SYSTEM

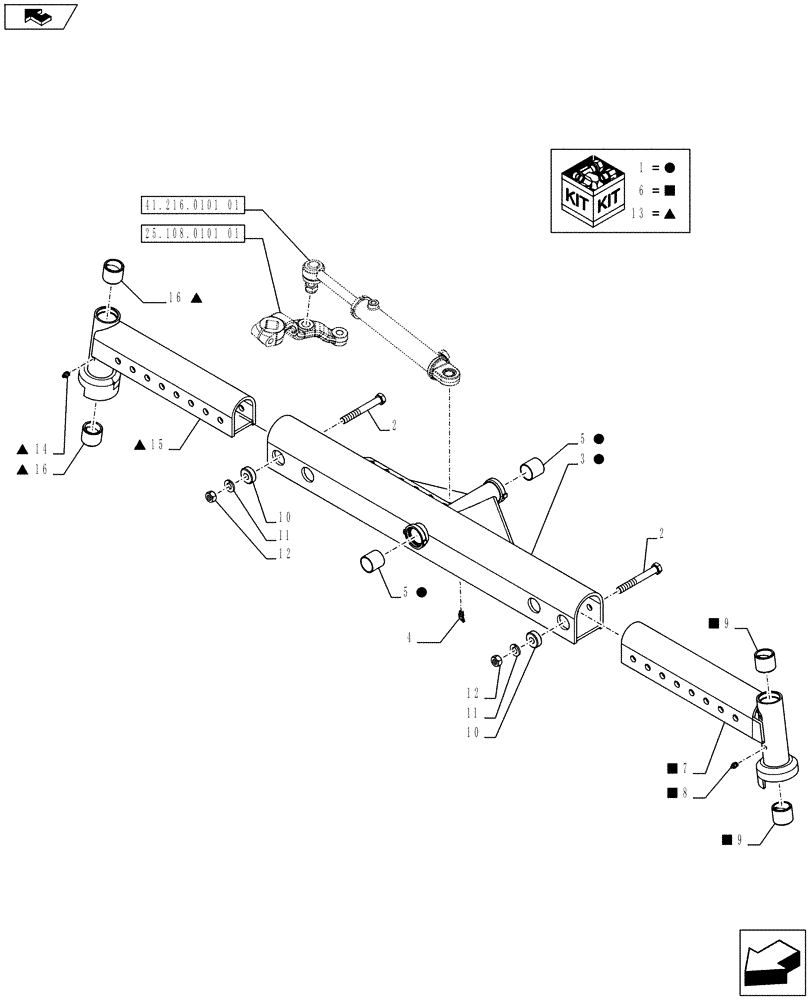

Схема запчастей Case IH FARMALL 75C - (25.100.0801) - 2WD FRONT AXLE - BODY (VAR.330851) (25) - FRONT AXLE SYSTEM
16
4
1
10
8
1
1
1
6
13
12
13
3
13
1
12
13
14
5
5
6
10
16
13
1
9
2
15
6
6
6
9
1
13
2
1
6
home
1
25.108.0101 01
41.216.0101 01
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84168696

AXLE HOUSING

ASSY, Contains Ref. 3, 5

1шт.

2

15981921

BOLT,Hex, M16 x 1.5 x 125mm, Cl 8.8

4шт.

3

87699324

AXLE HOUSING

1шт.

4

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

5

5115656

BUSHING,38.05mm ID x 42mm OD x 40mm L

2шт.

6

84168698

FRONT AXLE

ASSY, Contains Ref. 7-9

1шт.

7

87699330

END

1шт.

8

13407211

LUBE NIPPLE,M10 x 1

1шт.

9

82833489

BUSHING,38.05mm ID x 48.04mm OD x 40mm L

2шт.

10

5104245

SPACER,16.2mm ID x 40mm OD x 15mm

4шт.

11

10517279

LOCK WASHER,16.2mm ID x 30.6mm OD x 4.2mm Thk

4шт.

12

15502611

NUT,Hex, M16 x 1.5

4шт.

13

84168697

FRONT AXLE

ASSY, Contains Ref. 14-16

1шт.

14

13407211

LUBE NIPPLE,M10 x 1

1шт.

15

87699331

END

1шт.

16

82833489

BUSHING,38.05mm ID x 48.04mm OD x 40mm L

2шт.
