(23.101.0202) - 2WD LESS ENGAGEMENT - IDLER CASE - NAR - W/CAB (VAR.330306-331306 / 743554)

Запчасти Case IH FARMALL 75C (23.101.0202) - 2WD LESS ENGAGEMENT - IDLER CASE - NAR - W/CAB (VAR.330306-331306 / 743554) (23) - FOUR WHEEL DRIVE SYSTEM

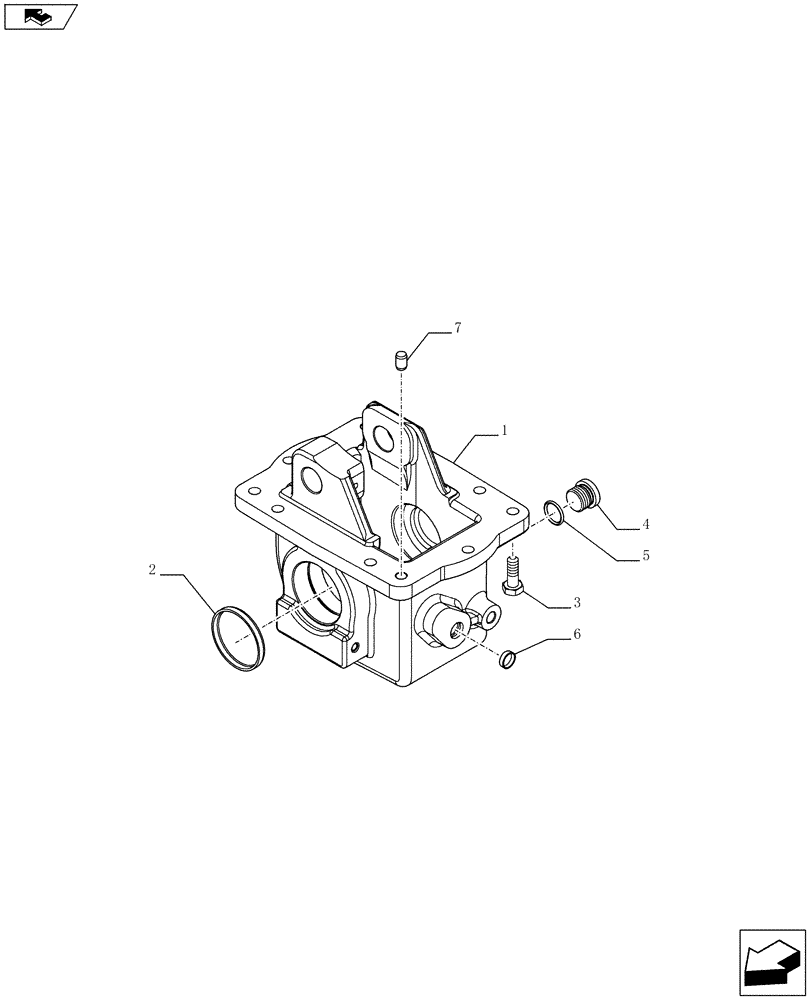

Схема запчастей Case IH FARMALL 75C - (23.101.0202) - 2WD LESS ENGAGEMENT - IDLER CASE - NAR - W/CAB (VAR.330306-331306 / 743554) (23) - FOUR WHEEL DRIVE SYSTEM
4
2
6
home
7
3
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84244897

HOUSING

1шт.

2

84303380

CUP

1шт.

3

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

8шт.

4

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

1шт.

5

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

6

14328501

PLUG,M16, Tapered

1шт.

7

5153109

DOWEL,10mm OD x 15mm L

2шт.

Выбрано товаров: 7
