Запчасти Case IH FARMALL 75C (21.148.0103[02]) - MECHANICAL GEARBOX CONTROL (SHUTTLE 12x12) - DRIVE SHAFT - NAR - L/CAB (VAR.330069 / 743557) (21) - TRANSMISSION

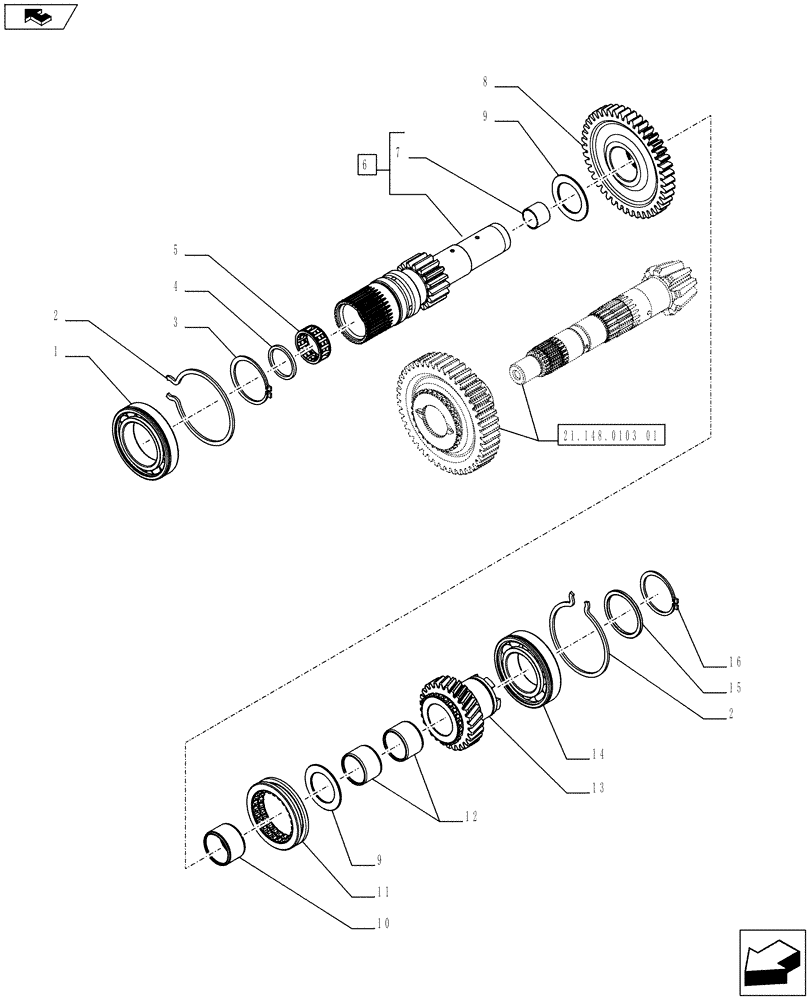

Схема запчастей Case IH FARMALL 75C - (21.148.0103[02]) - MECHANICAL GEARBOX CONTROL (SHUTTLE 12x12) - DRIVE SHAFT - NAR - L/CAB (VAR.330069 / 743557) (21) - TRANSMISSION
15
12
6
3
9
9
7
13
home
21.148.0103 01
5
2
14
1
10
2
8
4
16
11

Артикул

Название

Примечание

Количество

1

5178809

BALL BEARING,55mm ID x 90mm OD x 18mm W

55 x 90 x 18

1шт.

2

5168154

CIRCLIP,85.6mm ID x 2.6mm Thk

D=90

2шт.

3

800-1156

SNAP RING,M56, Ext

1шт.

4

84148356

TUBE SPACER,35mm ID x 42mm OD x 3.2mm L

1шт.

5

87370423

NEEDLE BEARING,35mm ID x 42mm OD x 16mm W

1шт.

6

84283016

SHAFT

12 x 12 ASSY, Contains Ref. 7

1шт.

7

5124504

BUSHING

1шт.

8

84234626

GEAR

1шт.

9

84248414

SPACER,38.2mm ID x 58mm OD x 2mm L

2шт.

10

84234630

NEEDLE BEARING,38mm ID x 43mm OD x 27mm W

1шт.

11

84242179

SLEEVE

1шт.

12

5168196

ROLLER CAGE BEARING,35mm ID x 40mm OD x 27mm W

35 x 40 x 27

2шт.

13

84234629

GEAR

1шт.

14

5168187

BALL BEARING,50mm ID x 90mm OD x 20mm W

50 x 90 x 20

1шт.

15

84248584

SPACER

1шт.

16

11069376

SNAP RING,M50, Ext

1шт.

Выбрано товаров: 16
