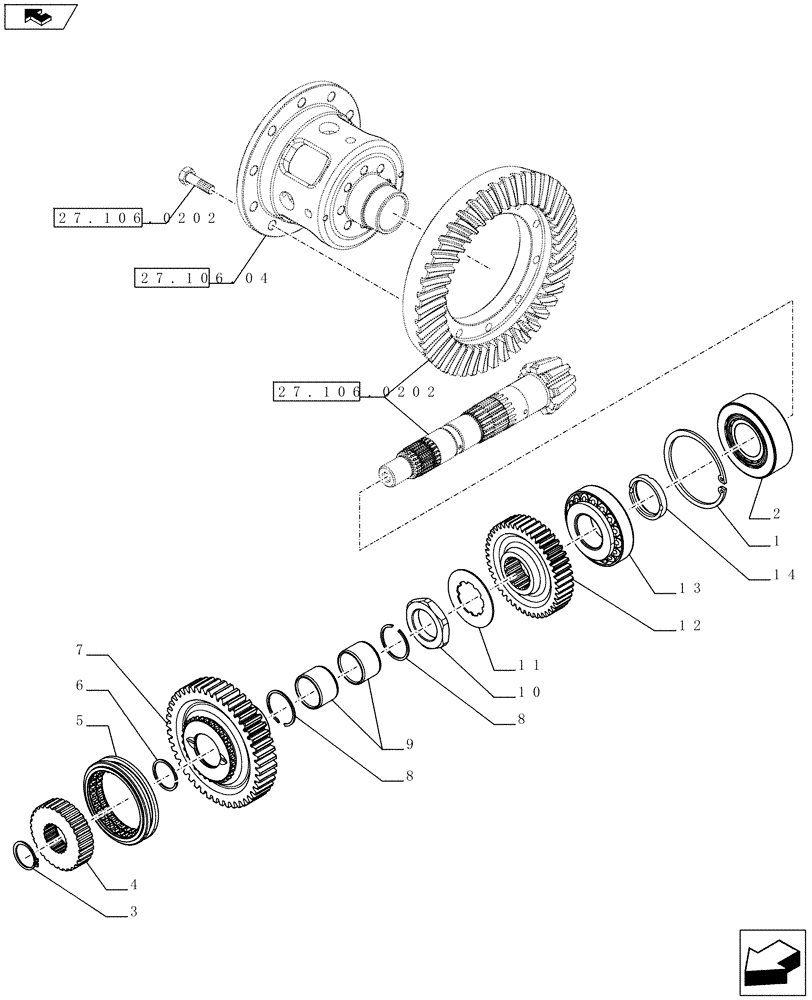

Запчасти Case IH FARMALL 75C (21.148.0102[01]) - MECHANICAL GEARBOX CONTROL (SHUTTLE 12x12) - SLOW/MEDIUM RANGE GEARS - NAR - W/CAB (VAR.333069 / 743557) (21) - TRANSMISSION

1

11062476

SNAP RING,M90, Int

1шт.

2

84234290

TAPERED BEARING,40mm ID x 90mm OD x 35.25mm W

1шт.

3

11067876

SNAP RING,M30, Ext

1шт.

4

84234606

GEAR,22T Internal / 30T External

1шт.

5

87370421

SLEEVE,Z30

Slow/Medium Range

1шт.

6

5116573

CIRCLIP,34.1mm ID x 36.4mm OD

1шт.

7

84234607

GEAR

Slow Range

1шт.

8

5168197

SNAP RING,1.5mm Thk, Int

2шт.

9

5168196

ROLLER CAGE BEARING,35mm ID x 40mm OD x 27mm W

35 x 40 x 27

2шт.

10

5171819

NUT,M38x1

1шт.

11

5168182

LOCK WASHER,36mm ID x 68mm OD x 1.5mm Tnk

1шт.

12

84234605

GEAR

1шт.

13

84234287

TAPERED BEARING,40mm ID x 90mm OD x 30mm W

1шт.

14

84248585

SHIM

7.45MM

1шт.

14

84248586

SHIM

7.50MM

1шт.

14

84248587

SHIM,40.2mm ID x 50mm OD x 7.55mm Thk

7.55MM

1шт.

14

84248588

SHIM

7.60MM

1шт.

14

84248589

SHIM

7.65MM

1шт.

14

84248590

SHIM

7.70MM

1шт.

14

84248591

SHIM

7.75MM

1шт.

14

84248592

SHIM

7.80MM

1шт.

14

84248593

SHIM

7.85MM

1шт.
