(21.148.01[02]) - CENTRAL REDUCTION - DRIVE SHAFT - NAR

Запчасти Case IH FARMALL 75C (21.148.01[02]) - CENTRAL REDUCTION - DRIVE SHAFT - NAR (21) - TRANSMISSION

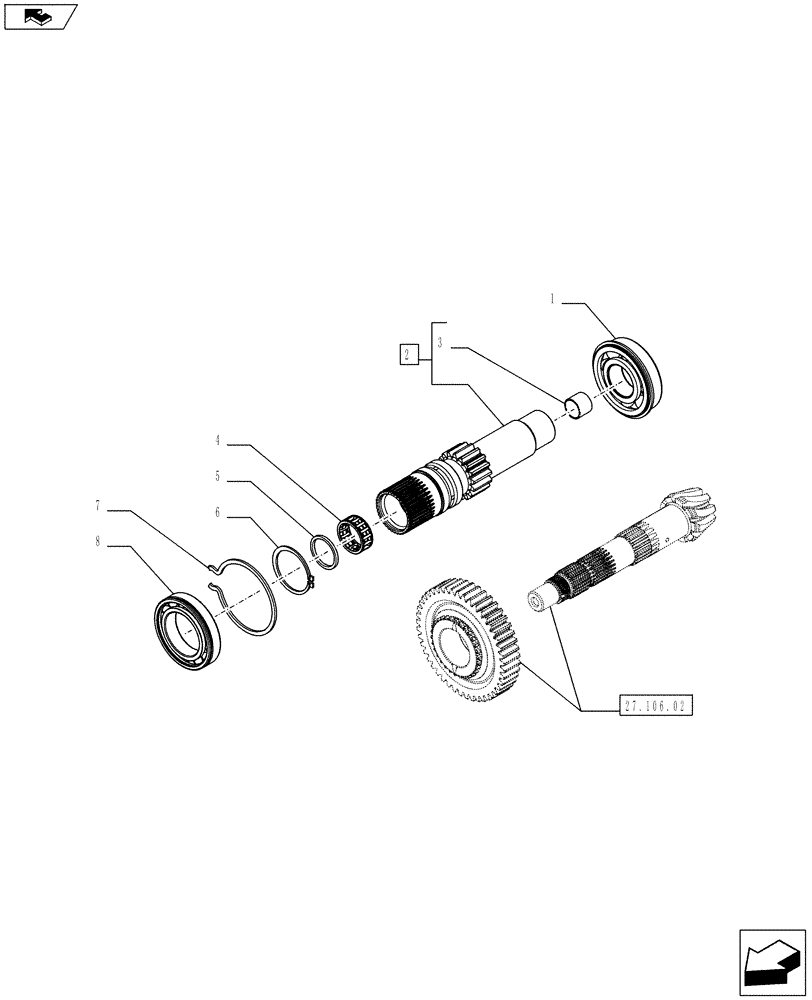

Схема запчастей Case IH FARMALL 75C - (21.148.01[02]) - CENTRAL REDUCTION - DRIVE SHAFT - NAR (21) - TRANSMISSION
27.106.02
5
6
1
3
4
7
8
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5168238

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

2

84283015

SHAFT

8 x 8 ASSY, Contains Ref. 3

1шт.

3

5124504

BUSHING

1шт.

4

87370423

NEEDLE BEARING,35mm ID x 42mm OD x 16mm W

1шт.

5

84148356

TUBE SPACER,35mm ID x 42mm OD x 3.2mm L

1шт.

6

800-1156

SNAP RING,M56, Ext

1шт.

7

5168154

CIRCLIP,85.6mm ID x 2.6mm Thk

D=90

1шт.

8

5178809

BALL BEARING,55mm ID x 90mm OD x 18mm W

1шт.
