(21.130.0104) - TRANSMISSION 12X12 - TRANSMISSION EXTERNAL SHIFTING CONTROLS AND CENTRAL REDUCTION GEARS CONTROLS - NAR - W/CAB (VAR.330272 / 743546; VAR.330276)

Запчасти Case IH FARMALL 75C (21.130.0104) - TRANSMISSION 12X12 - TRANSMISSION EXTERNAL SHIFTING CONTROLS AND CENTRAL REDUCTION GEARS CONTROLS - NAR - W/CAB (VAR.330272 / 743546; VAR.330276) (21) - TRANSMISSION

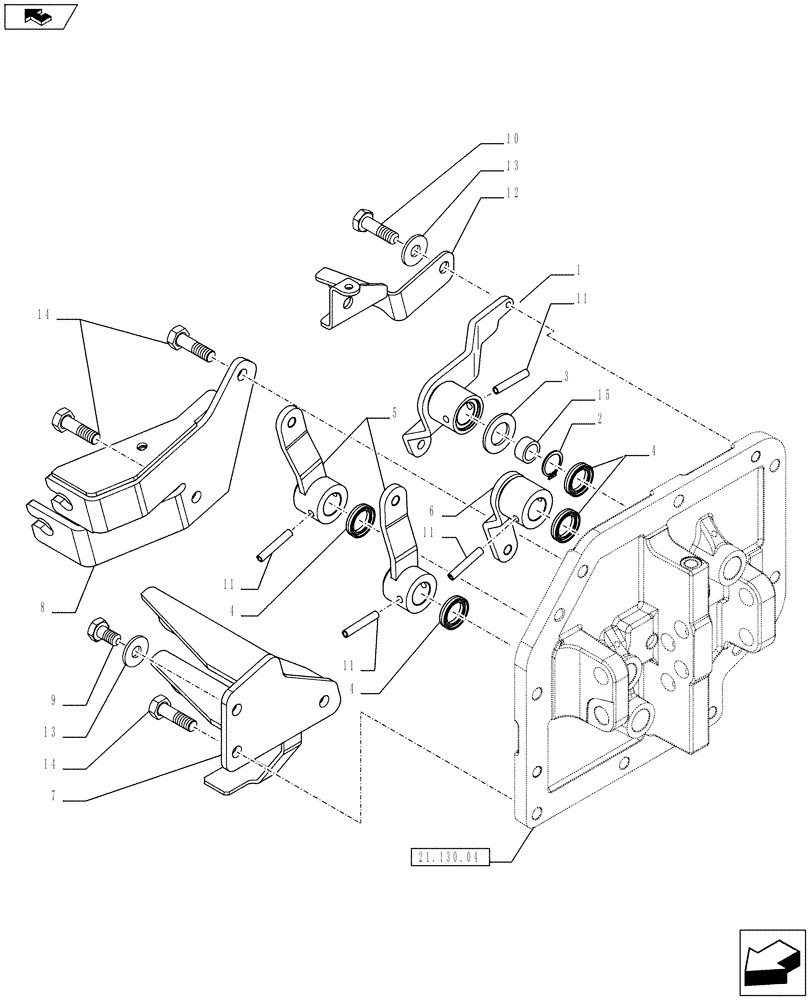

Схема запчастей Case IH FARMALL 75C - (21.130.0104) - TRANSMISSION 12X12 - TRANSMISSION EXTERNAL SHIFTING CONTROLS AND CENTRAL REDUCTION GEARS CONTROLS - NAR - W/CAB (VAR.330272 / 743546; VAR.330276) (21) - TRANSMISSION
4
14
1
15
7
4
10
13
1
4
1
1
3
9
1
2
1
14
5
1
1
6
1
21.130.04
13
12
home
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84427386

LEVER

1шт.

2

11066876

SNAP RING,M20, Ext

1шт.

3

84423710

WASHER,20.2mm ID x 35mm OD x 2.25mm Thk

1шт.

4

84200030

SEALING RING,20mm ID x 28mm OD x 5.5mm Thk

SEALRING

4шт.

5

84225198

CONTROL LEVER

2шт.

6

84225199

CONTROL LEVER

1шт.

7

84296099

BRACKET

1шт.

8

84250790

BRACKET

1шт.

9

15970531

BOLT,Hex, M10 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

10

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

2шт.

11

13942770

ROLL PIN

4шт.

12

84286344

BRACKET

1шт.

13

11190679

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD x 2.5mm Thk

3шт.

14

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

4шт.

15

84354687

SPACER,16.2mm ID x 20mm OD x 9.5mm L

1шт.
