Запчасти Case IH FARMALL 75C (21.130.0101) - TRANSMISSION EXTERNAL SHIFTING CONTROLS AND CENTRAL REDUCTION GEARS CONTROLS - NAR - W/CAB (21) - TRANSMISSION

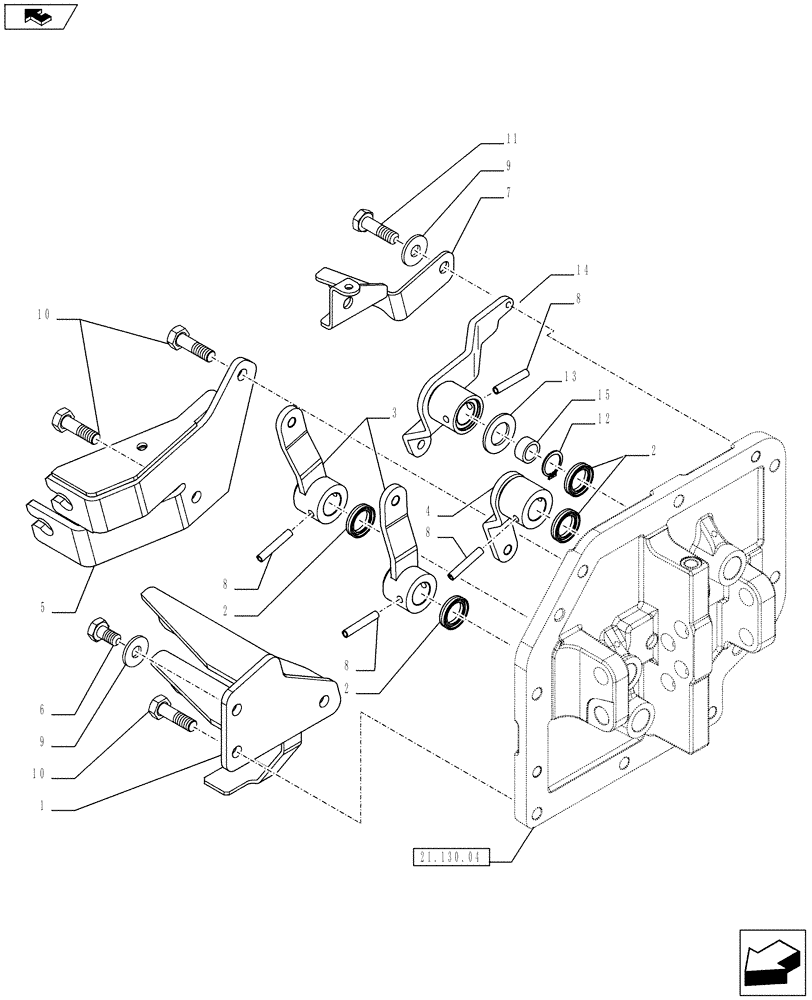

Схема запчастей Case IH FARMALL 75C - (21.130.0101) - TRANSMISSION EXTERNAL SHIFTING CONTROLS AND CENTRAL REDUCTION GEARS CONTROLS - NAR - W/CAB (21) - TRANSMISSION
15
8
2
home
2
8
3
9
10
1
12
13
8
1
7
8
10
6
1
4
2
14
9
5
21.130.04

Артикул

Название

Примечание

Количество

1

84296099

BRACKET

1шт.

2

84200030

SEALING RING,20mm ID x 28mm OD x 5.5mm Thk

SEALRING

4шт.

3

84225198

CONTROL LEVER

2шт.

4

84225199

CONTROL LEVER

1шт.

5

84250790

BRACKET

1шт.

6

15970531

BOLT,Hex, M10 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

7

84286344

BRACKET

1шт.

8

13942770

ROLL PIN

4шт.

9

11190679

BELLEVILLE WASHER,M10 Bolt Size x 27mm OD x 2.5mm Thk

3шт.

10

14233734

BOLT,Hex, M10 x 1.25 x 35mm, Cl 10.9, Full Thd

4шт.

11

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

2шт.

12

11066876

SNAP RING,M20, Ext

1шт.

13

84423710

WASHER,20.2mm ID x 35mm OD x 2.25mm Thk

1шт.

14

84427386

LEVER

1шт.

15

84354687

SPACER,16.2mm ID x 20mm OD x 9.5mm L

1шт.

Выбрано товаров: 15
