(21.100.0104) - MECHANICAL GEARBOX CONTROL (SHUTTLE 8X8-12X12) - HEAT EXCHANGER OIL DELIVERY PIPE - NAR - (VAR.333068-330069 / 743557)

Запчасти Case IH FARMALL 75C (21.100.0104) - MECHANICAL GEARBOX CONTROL (SHUTTLE 8X8-12X12) - HEAT EXCHANGER OIL DELIVERY PIPE - NAR - (VAR.333068-330069 / 743557) (21) - TRANSMISSION

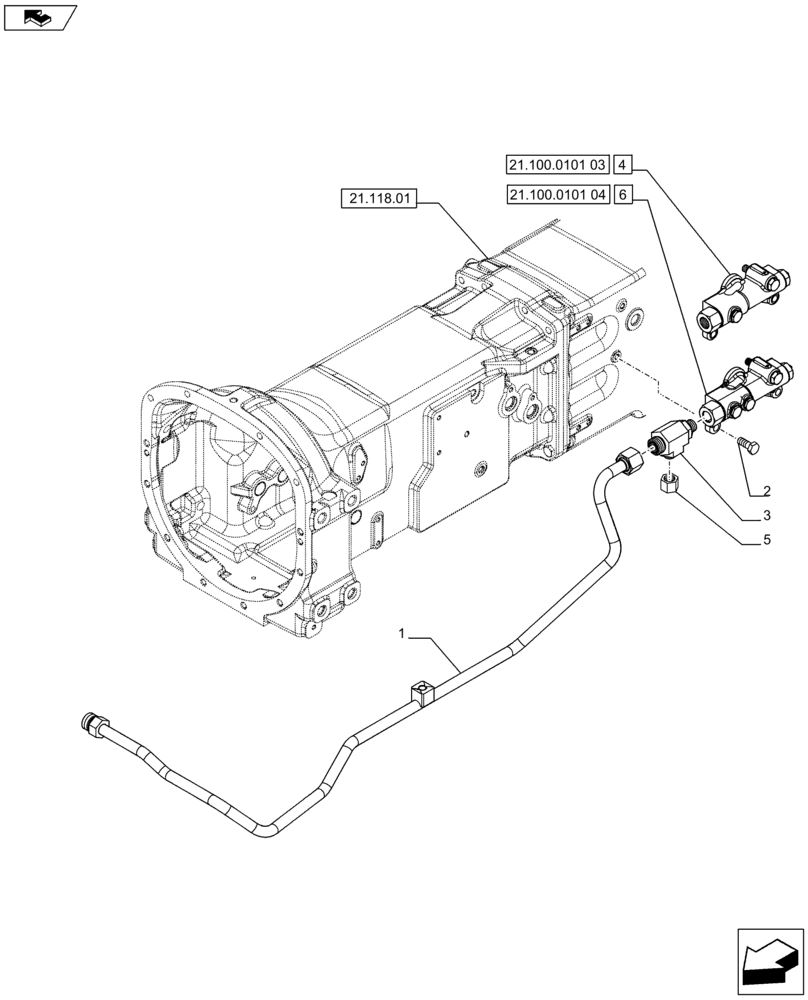

Схема запчастей Case IH FARMALL 75C - (21.100.0104) - MECHANICAL GEARBOX CONTROL (SHUTTLE 8X8-12X12) - HEAT EXCHANGER OIL DELIVERY PIPE - NAR - (VAR.333068-330069 / 743557) (21) - TRANSMISSION
21.100.0101 03
1
4
2
5
home
6
3
21.118.01
21.100.0101 04
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84384244

RIGID TUBE

1шт.

2

84145871

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8

2шт.

3

84308737

FITTING

1шт.

4

5186117

HYDRAULIC VALVE

ASSY, 16 Bar, Years: -18-APR-12

1шт.

5

9625546

CAP,11/16" - 16 ORFS

1шт.

6

84488429

HYDRAULIC VALVE

ASSY, 16 Bar, Start Year: 19-APR-12

1шт.
