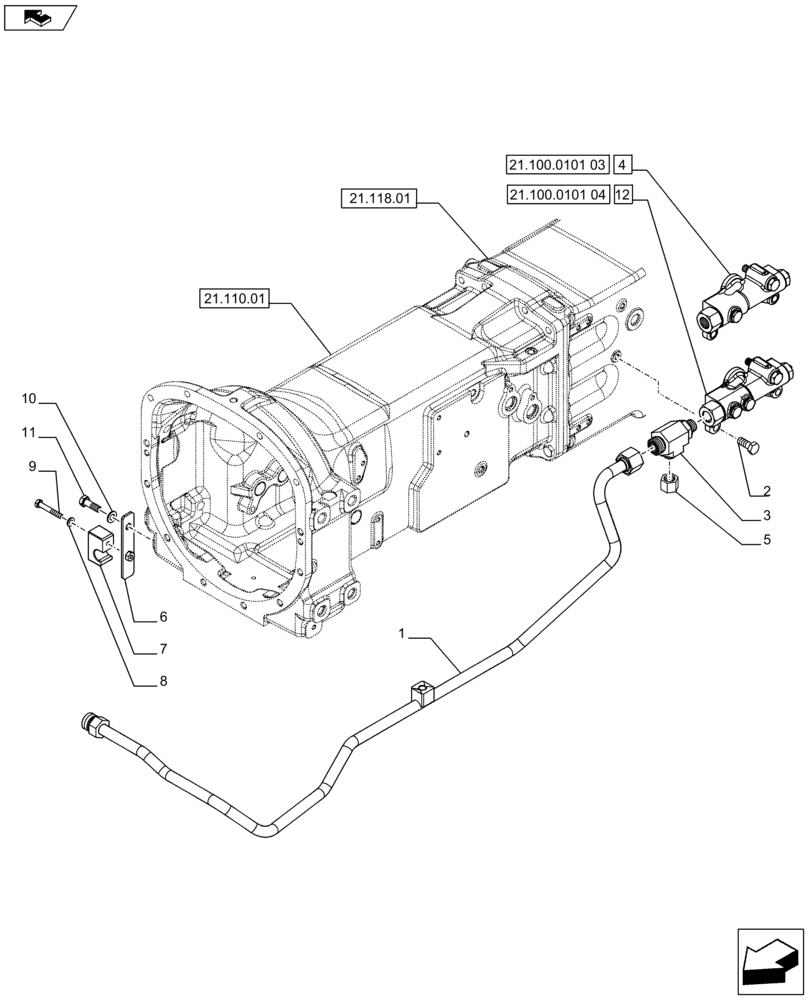

Запчасти Case IH FARMALL 75C (21.100.0103) - MECHANICAL GEARBOX CONTROL (SHUTTLE 12X12) - HEAT EXCHANGER OIL DELIVERY PIPE - NAR - L/CAB (VAR.330069 / 743557) (21) - TRANSMISSION

1

84384244

RIGID TUBE

1шт.

2

84145871

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8

2шт.

3

84308737

FITTING

1шт.

4

5186117

HYDRAULIC VALVE

ASSY, 16 Bar, Years: -18-APR-12

1шт.

5

9625546

CAP,11/16" - 16 ORFS

1шт.

6

84409985

BRACKET

1шт.

7

84309587

BRACKET

1шт.

8

10297860

SEAL,6mm ID x 12mm OD x 1.5mm Thk

1шт.

9

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

1шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

11

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

1шт.

12

84488429

HYDRAULIC VALVE

ASSY, 16 Bar, Start Year: 19-APR-12

1шт.
