Запчасти Case IH FARMALL 75C (18.104.01[02]) - PTO ENGAGEMENT CLUTCH, SERVOCONTROL - PIPES - W/CAB (18) - CLUTCH

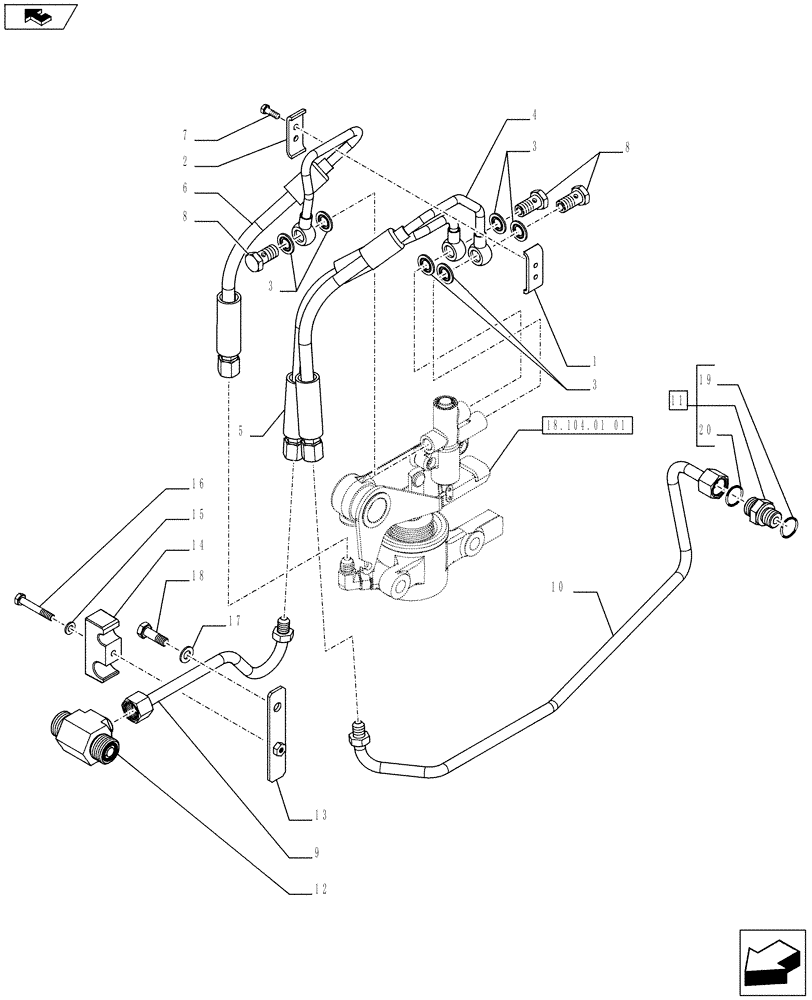

Схема запчастей Case IH FARMALL 75C - (18.104.01[02]) - PTO ENGAGEMENT CLUTCH, SERVOCONTROL - PIPES - W/CAB (18) - CLUTCH
14
2
6
1
16
home
18.104.01 01
8
13
8
10
9
20
18
17
7
15
3
5
3
19
11
4
3
12

Артикул

Название

Примечание

Количество

1

5184084

RETAINER COLLAR,2x5mm ID x 40mm L

1шт.

2

5184304

BRACKET

1шт.

3

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

M12

6шт.

4

5183775

FLEXIBLE HOSE,12.2mm ID x 252mm L

1шт.

5

5183772

FLEXIBLE HOSE,12.2mm ID x 242mm L

1шт.

6

5183774

FLEXIBLE HOSE,12.2mm ID x 232mm L

1шт.

7

86050276

BOLT,Hex, M5 x 16mm, Cl 8.8, Full Thd

2шт.

8

10185011

BANJO BOLT,M12 x 1.25 x 23mm

3шт.

9

84372319

RIGID TUBE

PTO Hydraulic Control

1шт.

10

84372322

RIGID TUBE

1шт.

11

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Contains Ref. 19, 20

1шт.

12

84308686

FITTING

1шт.

13

84409985

BRACKET

1шт.

14

84372324

FIXING PLATE

1шт.

15

10297860

SEAL,6mm ID x 12mm OD x 1.5mm Thk

1шт.

16

43118

BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8

1шт.

17

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

18

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

1шт.

19

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

7 x 364

1шт.

20

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2.2 x 13.3

1шт.

Выбрано товаров: 20
