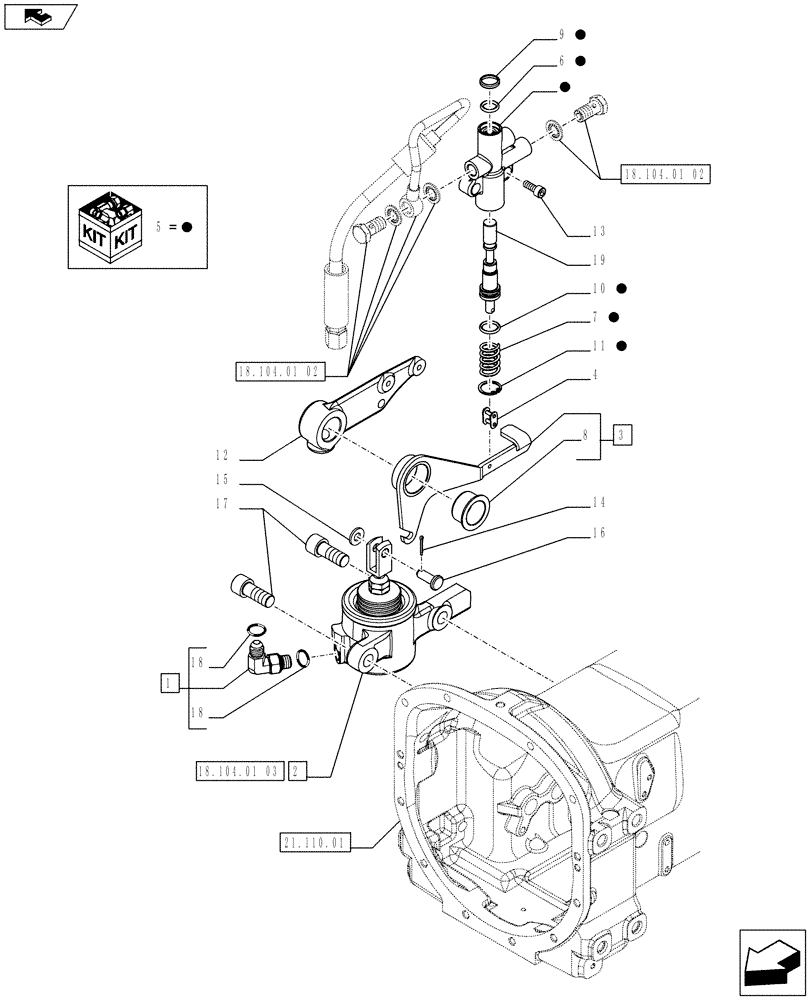

Запчасти Case IH FARMALL 75C (18.104.01[01]) - PTO ENGAGEMENT CLUTCH, SERVOCONTROL - CYLINDER AND RELEVANT PARTS - W/CAB (18) - CLUTCH

1

87616449

HYD CONNECTOR

ASSY, Contains Ref. 18

1шт.

2

5185842

ACTUATOR

ASSY

1шт.

3

5185806

LEVER

ASSY, Contains Ref. 8

1шт.

4

5185788

LINK,8.7mm Pitch

1шт.

5

5185025

HYDRAULIC VALVE

ASSY, Contains Ref. 6, 7, 9-11

1шт.

6

5103230

O-RING,2.62mm Thk x 11.91mm ID

1шт.

7

5188876

SPRING,Compression, 18.5mm OD x 30.5mm L

1шт.

8

5185794

BUSHING,24.02mm ID x 29mm OD x 17mm L

1шт.

9

5114359

SCRAPER RING,Locking, 12mm ID x 18mm OD x 5mm Thk

1шт.

10

5146468

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

M2,62 x 13,94

1шт.

11

11057876

SNAP RING,M20, Int

1шт.

12

5183637

LEVER

1шт.

13

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

2шт.

14

86639115

COTTER PIN,M2 x 12

1шт.

15

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

16

10050811

PIN,8mm OD x 22mm L

1шт.

17

14331121

HEX SOC SCREW,M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

18

14437685

O-RING,9.30mm ID x 2.40mm

1шт.

19

NSS

NOT SOLD SEPARAT

1шт.
