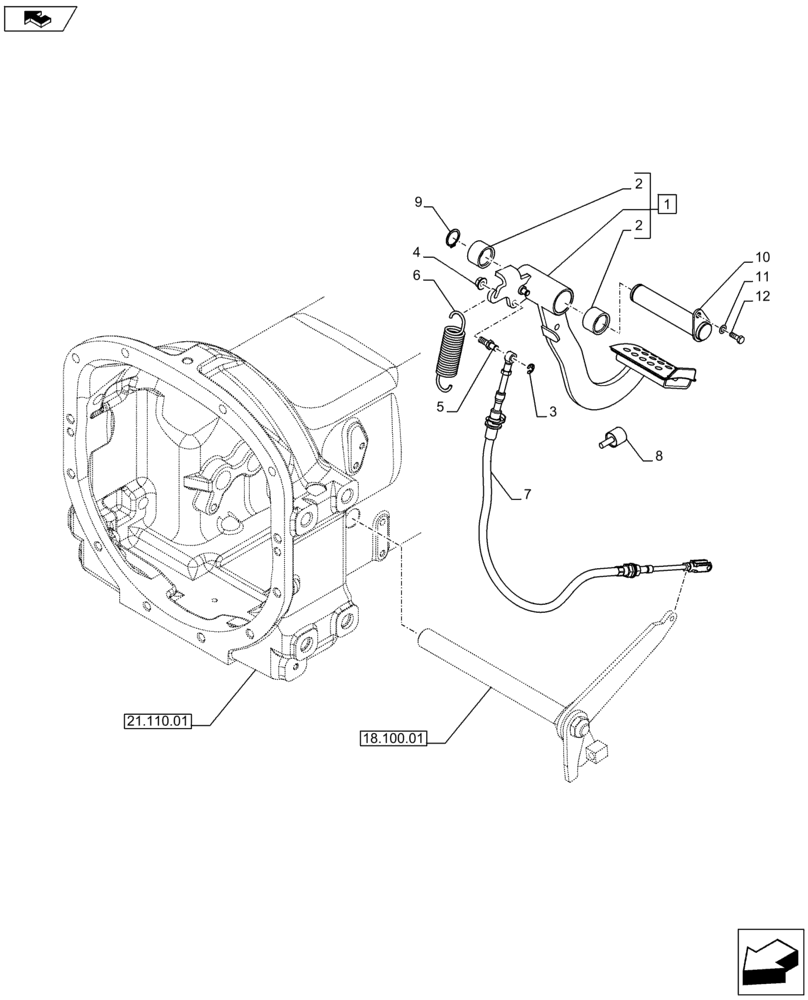

Запчасти Case IH FARMALL 75C (18.100.0301[01A]) - POWER SHUTTLE TRANSMISSION - CLUTCH PEDAL (VAR.330274-330276) - BEGIN YR 24-JUN-2014 (18) - CLUTCH

1

84584926

PEDAL

ASSY, Contains Ref. 2

1шт.

2

84394202

NEEDLE BEARING,Needle, 25mm ID x 32mm OD x 20mm W

2шт.

3

800-316

CIRCLIP,M6

1шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

D=6

1шт.

5

84339638

PIN,6mm OD x 26mm L

1шт.

6

84545385

SPRING,Extension, 40mm OD, 89mm L

1шт.

7

84372786

FLEXIBLE CABLE

Clutch Power Shuttle

1шт.

8

5115768

STOP

1шт.

9

11067371

CIRCLIP,M25

1шт.

10

84591943

ROD

1шт.

11

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

12

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

1шт.
